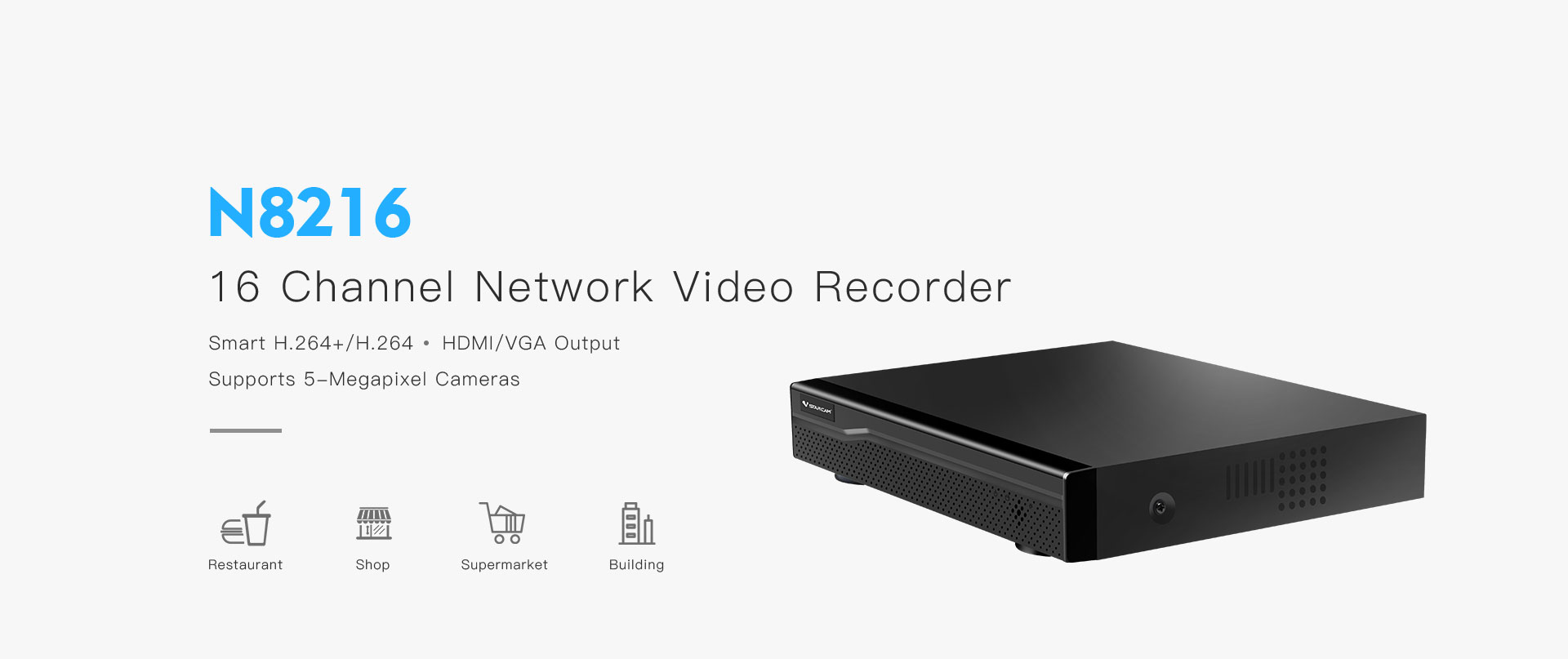

N8216

Detail Specs
  • Support

    •

    • [ Three working modes optional ] -
    1. Work 16pcs 2MP cameras at the same time, and support 4pcs 2MP cameras playbacking . 2. Work 16pcs 3MP cameras at the same time and support 1pcs 3MP cameras playbacking. 3. Work 4pcs 5MP cameras and 12pcs 2MP cameras at the same time and support 1pc 5MP camera playbacking.

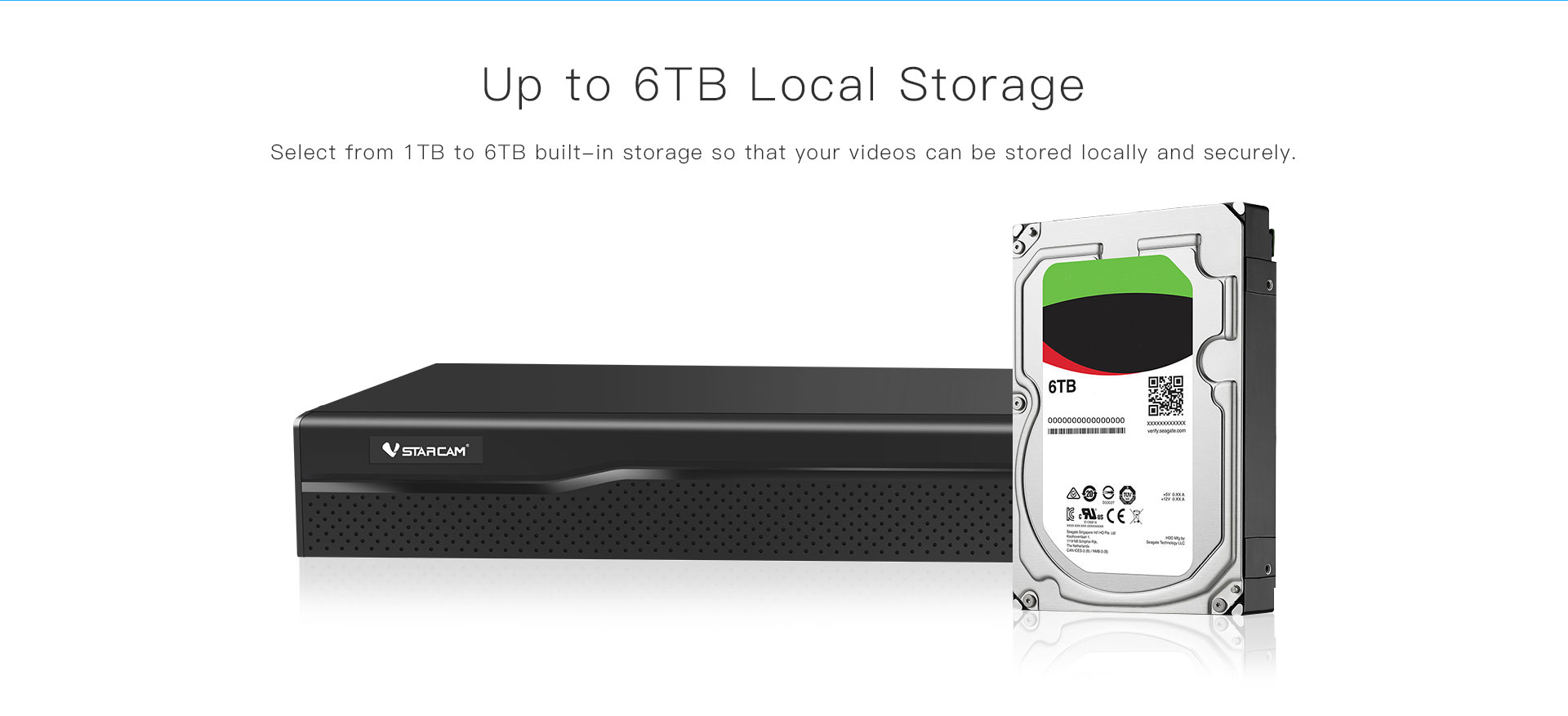

    • [ One hardisk mode ] - Support one hardisk , one SATA interface , support up to 6TB hardisk .

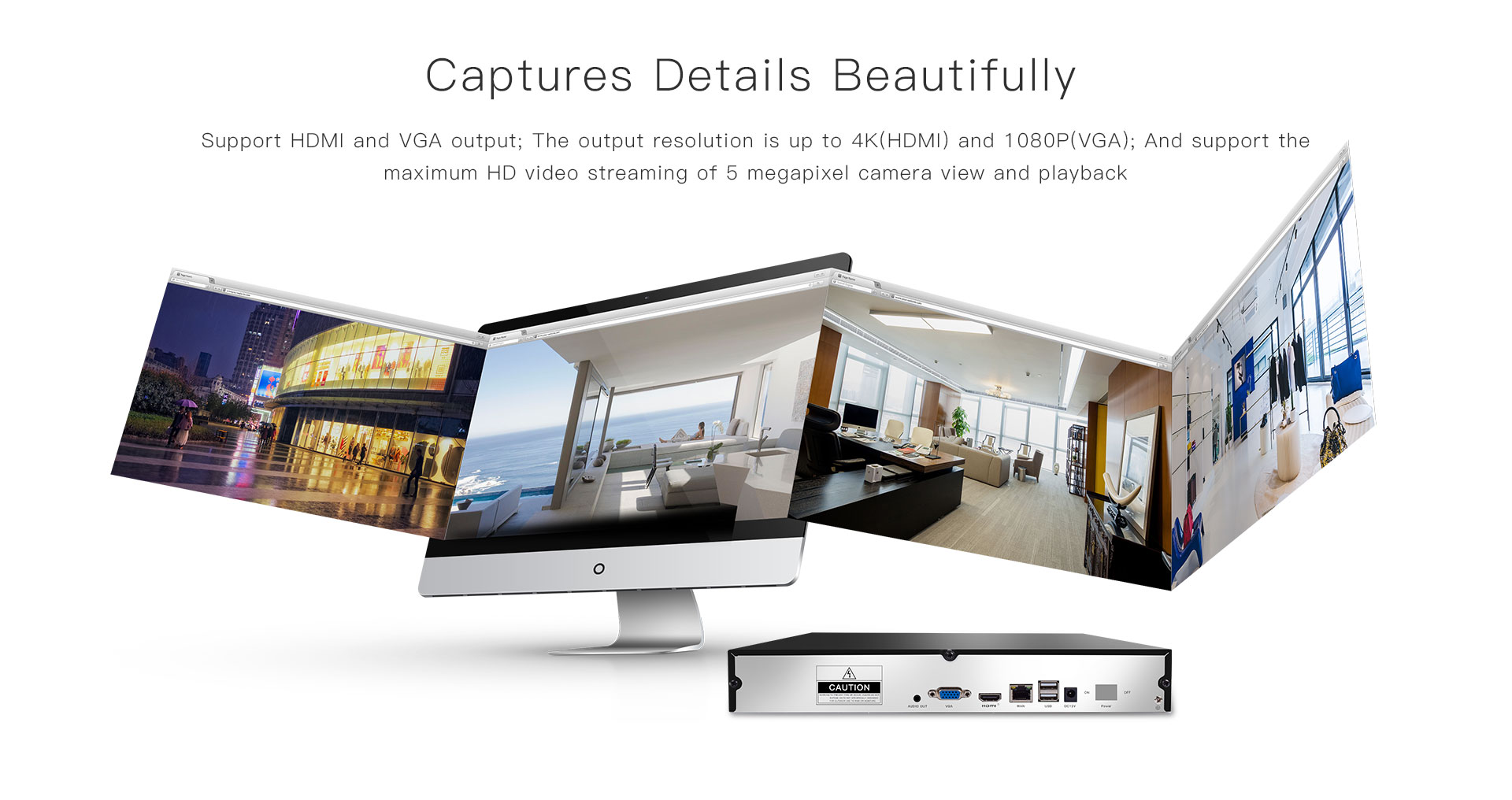

    • [ Smooth high-definition image ] - Support HDMI and VGA output. The output resolution is up to 1080p(HDMI&VGA). And support the maximum HD video streaming of 5MP camera view and playback.
    • [ Backup Video ] - Support backup by USB or Network. It can be easy to backup to USB disk or Hardisk.
    MODEL N8216-2
    Video Input IP Video Input 16 CH 720P/960P/1080P，RJ45 interface
    Switch NO
    Video Encoding HDMI Output 1  CH ，HDMI output ；Resolution：1920x1080P/60Hz;
    VGA  Output 1  CH ，VGA   output ；Resolution：1920x1080P/60Hz
    Audio Output  HDMI Audio output, optional for 3.5mm audio port output
    Video Encoding Video Compression stander  H.264+, H.264
    Recording /Playback 16CH 1080P record,  2 CH 1080P playback
    Video Resolution 720P，960P，1080P record
    Frame Rate PAL: 25 F/S；NTSC :30  F/S
    Video Bitrate 256 Kbps -- 2.0Mbps(@1080P)
    Stream Type Audio/Video,Variable Rate(VBR) , Constant Bit Rate(CBR)
    Dul-Stream supprt
    Audio Compression G.711
    Stream 70Mbps
    HDD Storage Type 1 *  SATA
    Storage Capacity 6TB In Max
    Backup USB Backup,remote backup

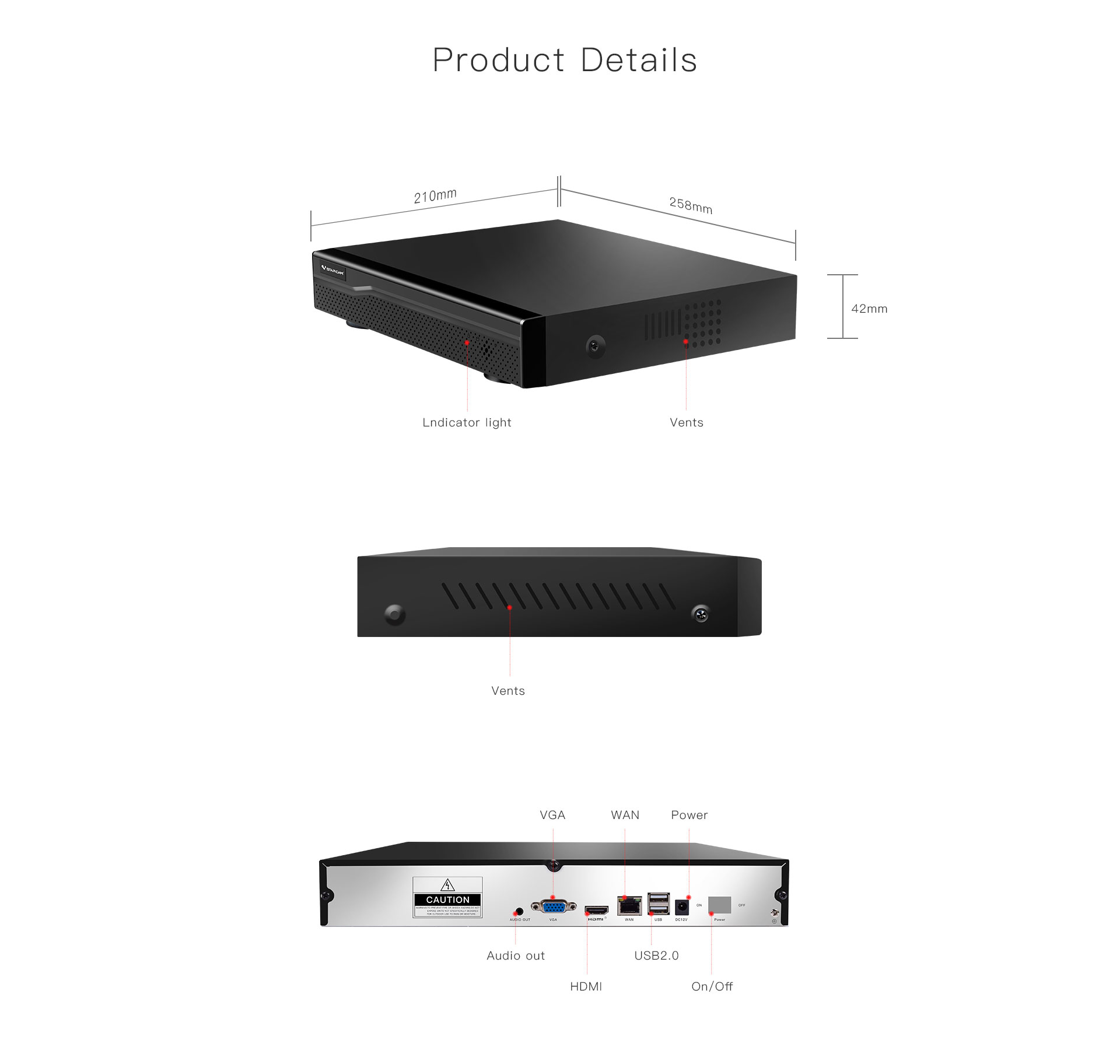

    External Interface Network Interface RJ45 10M / 100M Internet Interface
    USB Interface 2 * USB2.0 Interface(Support Upgrade,Backup,Mouse)
    Serial Interface 1 * RS485 Interface
    Others Temperature -10°---- 55°
    Size TBD
    Weight TBD
    Operation System Embedded Linux Operation System
    Soft Power-Off Not Support
    Device Control  IR remote control,Mouse
    Power Input DC +12 V / 2A
