Sorts | Type | Parameters |
System | Operating system | Embedded Linux |
Online visitor | Supports 4 visitors at the same time | |
CPU/Image sensor | 1/3 inch 1440p progressive scan CMOS sensor | |
Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
Lens/Viewing angle | 4mm@F2.3/101°(Diagonal) | |
Night vision | IR-CUT with auto-switching,9 pcs LED lights, 6 pcs IR LED lights; Irradiation distance: 20~30 m | |
Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG | |
Data Rate | Main stream: 1440p(2560×1440)@30fps/1296p(2304×1296)@15fps Substream:360p(640×360)@15fps | |
Bit rate/maximum frame rate | 128~4096kbps/30fps | |
Image adjustment | Brightness and contrast are adjustable | |
Audio | Input | Built-in -38dB microphone |
Output | Built-in 8Ω2W speaker | |
Sampling frequency/bit width | 8KHz/16bit | |
Compression standard/Bit Rate | G.711/64kbps | |
Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 |
Network protocol | TCP/IP,HTTP,TCP,ONVIF,UDP,DHCP,DNS,NTP,RTSP, P2P etc. | |
Wireless network | IEEE802.11b/g/n;Supports AP mode | |
Wireless frequency | 2.4GHz | |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |

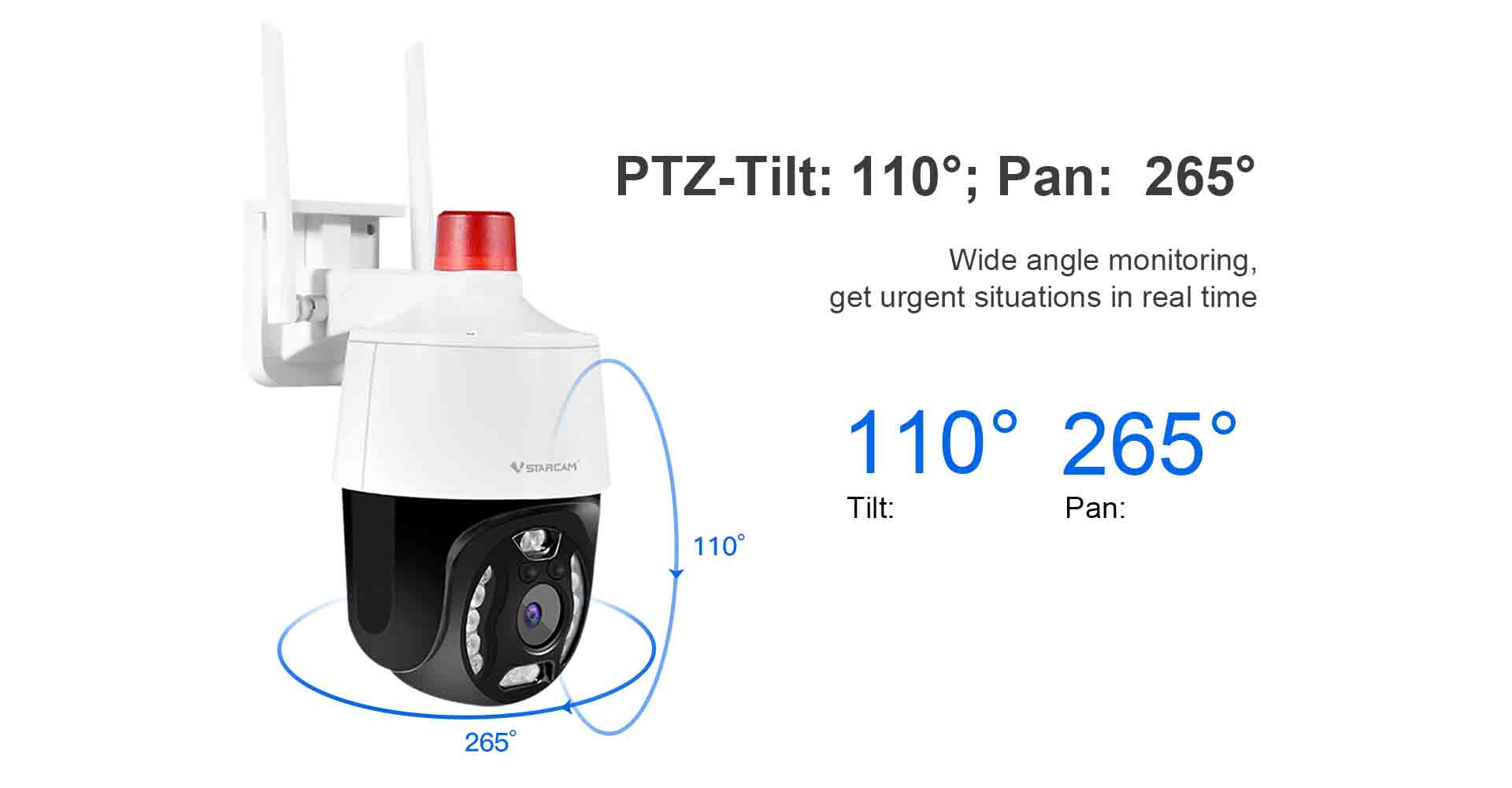

Pan & Tilt | Pan & Tilt | Pan 265° /Tilt 110° |
Preset position | Supports 16 (Mobile phone App only supports 5) preset positions | |
Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS |
Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid tracking; Absence detection alarm; Alarm voice prompt , flash & irradiation; LED light Timing ON & OFF |
Physical Indicators | Rated voltage | DC12V±5% |
Power consumption | Rated power:4.5W (with IR LED ON)/Max power:11W (with Pan & Tilt ON) | |
Operating condition | Temperature: -10~50℃, Humidity: <90% | |
Weight | (Note: in kind prevail) | |
Size | (230x205x140)mm |
