| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| CPU/Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor | |
| Minimum illumination | 0.5 Lux（Color mode）, 0.1 Lux（B&W mode） | |
| Lens/Viewing angle | 3.6mm@F2.0/101°(Diagonal) | |

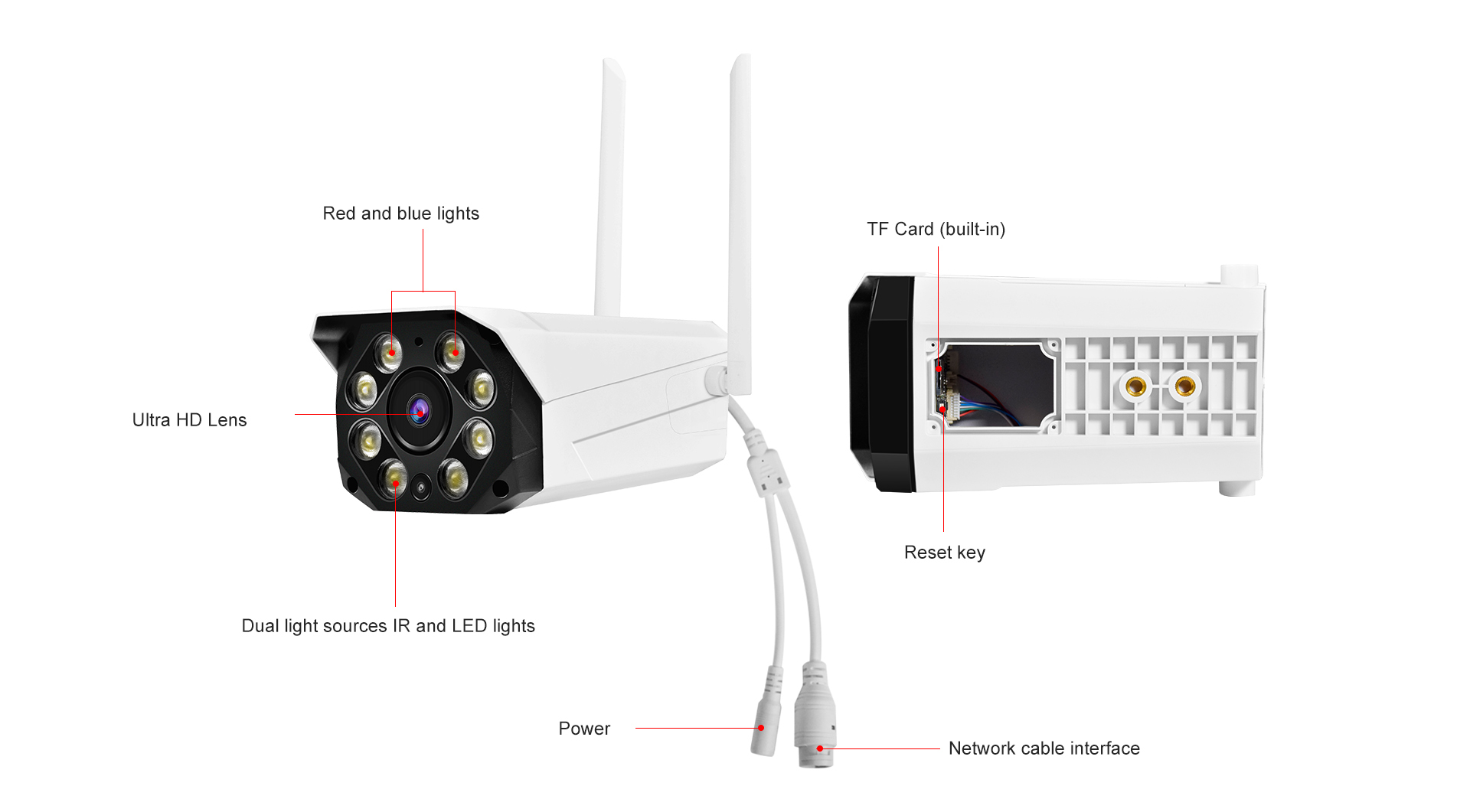

| Night vision | IR-CUT with auto-switching，6 pcs LED lights, 2 pcs red & blue alarm lights, Irradiation distance: 20~30 m | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| Data Rate | Main stream: 1080p(1920×1080)@30fps/1296p(2304×1296)@15fps Substream：360p(640×360)@15fps | |
| Bit rate/maximum frame rate | 128～4096kbps/30fps | |
| Image adjustment | Brightness and contrast are adjustable | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/64kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 |
| Network protocol | TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP,ONVIF, RTSP, P2P etc. | |
| Wireless network | IEEE802.11b/g/n；Supports AP mode | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage; NVR；NAS |
| Alarm | Alarm detection | Delimitation detection; Humanoid framing; Humanoid detection; Absence detection; Alarm voice prompt, flash & irradiation; LED light timing ON & OFF |
| Physical indicators | Rated voltage | DC12V±5% |
| Operating condition | Temperature: -10～50℃, Humidity: ＜90% | |
| Weight | （Note: in kind prevail） | |
| Size | （208x149x110）mm |
