    1. Wireless & wired connection, 3MP, 4 inch (Dual antenna)

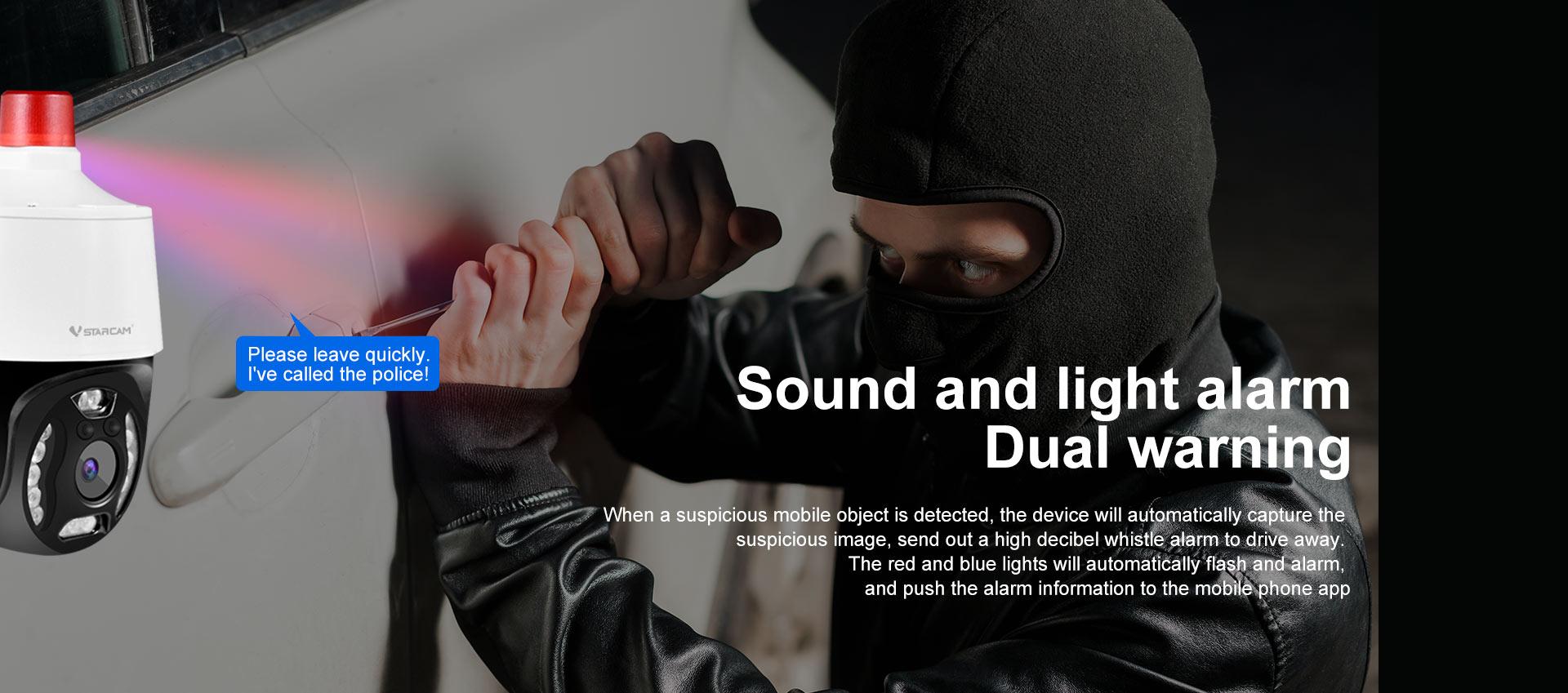

    2. Red and blue alarm lights
    3. Dual light sources;Night vision: 30 m; 9 pcs LED lights, 6 pcs IR LED lights

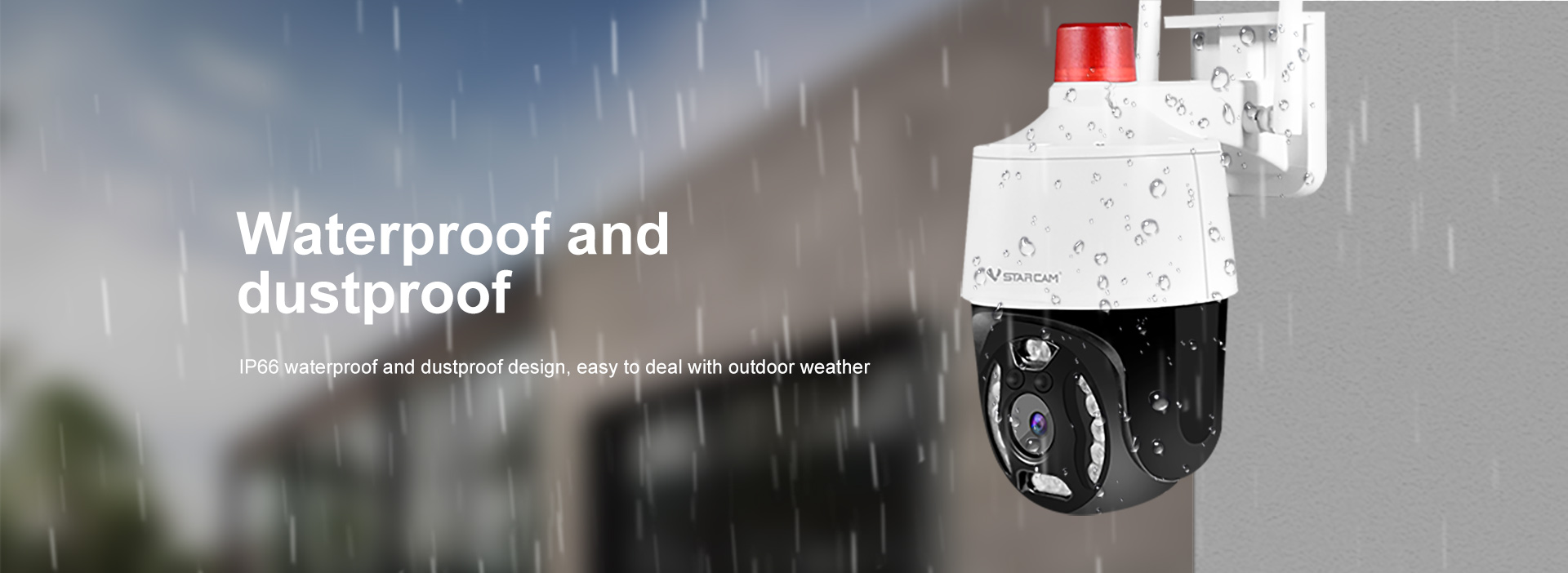

    4. Two-way talk;Pendant-mounted available; Rainproof & dustproof
    5. Storagecard recording supports up to 256G
    6. Delimitation detection; Humanoid framing; Humanoid tracking; Humanoid detection alarm
    7. LEDlight timing ON & OFF
    Sorts Type Parameters
        System         Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    CPU/Image sensor 1/2.9 inch 1080p progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle 3.6mm@F2.0/101°(Diagonal)
    Night vision IR-CUT with auto-switching,9 pcs LED lights, 6 pcs IR LED lights; Irradiation distance: 20~30 m
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    Data Rate Main stream: 1080p(1920×1080)@15fps Substream: 360p(640×360)@30fps
    Bit rate/maximum frame rate 128~4096kbps/30fps
    Image adjustment Brightness and contrast are adjustable
        Audio Input Built-in -38dB microphone
    Output Built-in 8Ω2W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/64kbps
        Network Network interface 10Mbps/100Mbps adaptive /RJ45
    Network protocol TCP/IP, HTTP, TCP, UDP, DHCP, ONVIF,DNS, NTP, RTSP, P2P etc.
    Wireless network IEEE802.11b/g/n;Supports AP mode
    Wireless frequency 2.4GHz
    Wireless security encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
      Pan & Tilt   Rotation angle Pan 265° /Tilt 110°
    Preset position Supports 16 (Mobile phone App only supports 5) preset positions
       Storage Storage functions Supports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
        Alarm     Alarm detection Supports Motion detection; Humanoid detection; Humanoid tracking; Absence detection alarm; Alarm voice prompt , flash & irradiation; LED light timing ON & OFF
      Physical indicators Rated voltage DC12V±5%
    Power consumption Rated power:4.5W (with IR LED ON)/Max power:11W (with Pan & Tilt ON)
    Operating condition Temperature: -10~50℃, Humidity: <90%
    Weight Net: 578g(Note: in kind prevail)
    Size (230x205x140)mm

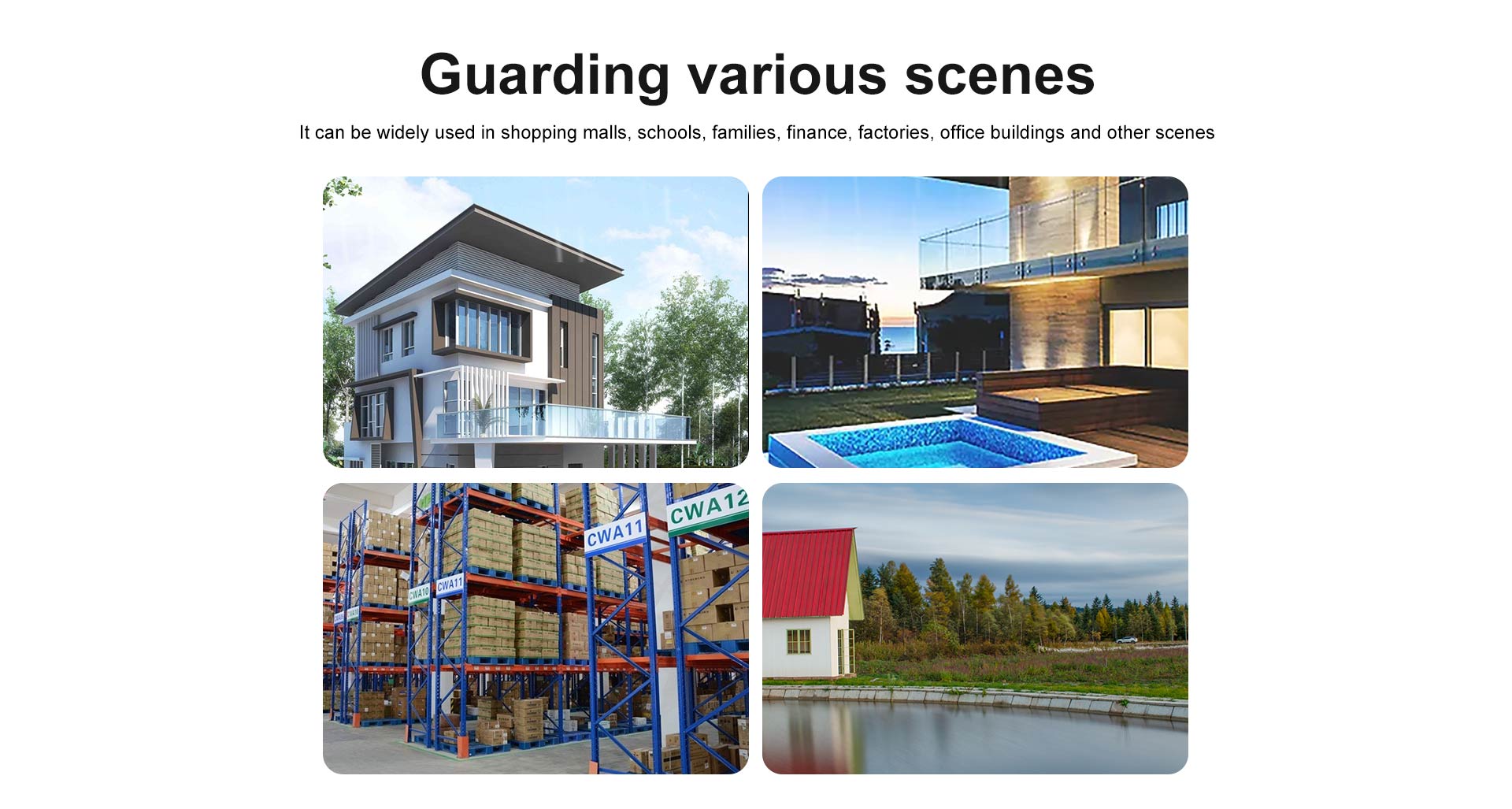

    CS668 Scenario shows
