  • SortsTypeParameters
                System        Operating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CPU/Image sensor1/3’’ 4Mega CMOS Image Sensor
    Minimum illumination0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle4mm@F2.0/101° Diagonal
    Night visionIR LED light+LED light; Irradiation distance: 15~20 m
    Compression standardH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
      Data RateMain stream: 1440p(2560×1440)@25fps Substream:360p(640×360)@15fps
    Bit rate/maximum frame rate128~4096kbps/30fps
    Image adjustmentBrightness and contrast are adjustable
        AudioInputBuilt-in -38dB microphone
    OutputBuilt-in 8Ω2 W speaker
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateG.711/64kbps
        NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45
    Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.

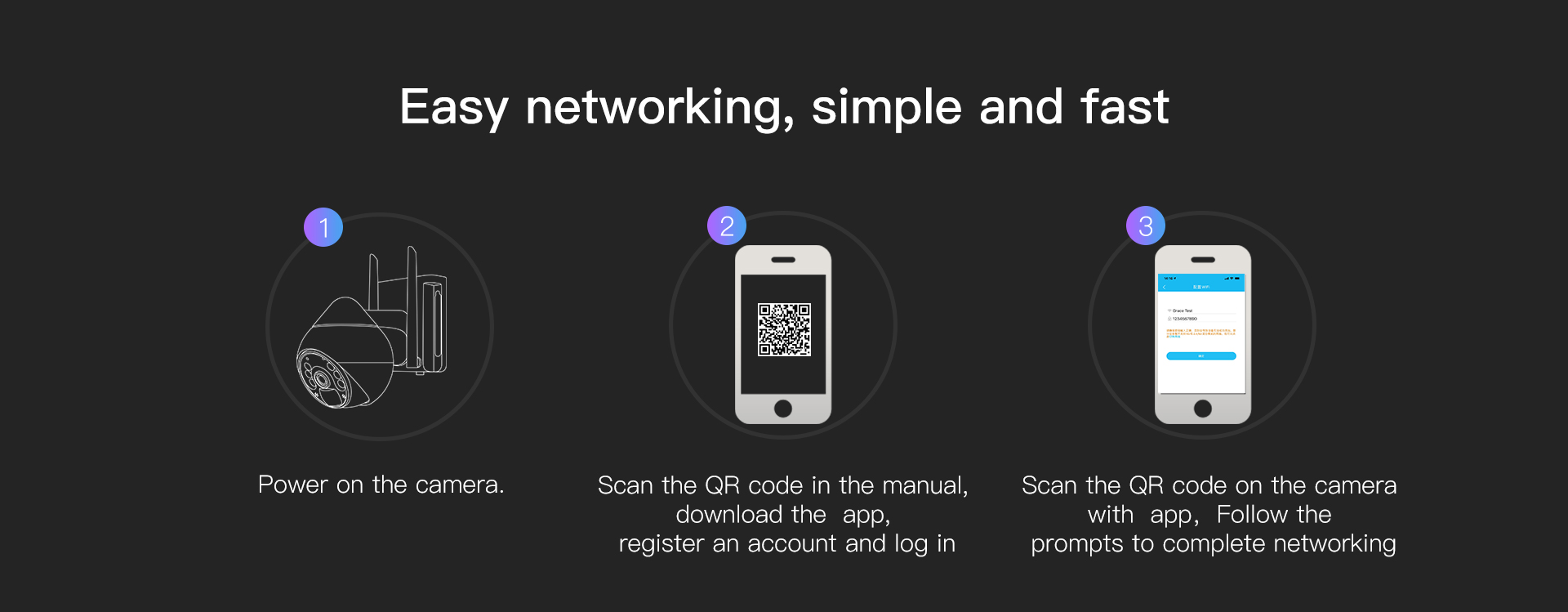

    Wireless networkIEEE802.11b/g/n;Supports AP mode
    Wireless frequency2.4~2.4835GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK  data encryption
      Pan & Tilt  Pan & Tilt  Pan 345° /Tilt 53°
    Preset positionSupports 16 (Mobile phone App supports 5) preset positions
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
      Alarm  Alarm detectionSupports Motion detection; Humanoid detection; Humanoid tracking;  Absence detection; LED light Timing ON & OFF
        Physical IndicatorsRated voltageDC12V±5%
    Power consumptionRated power:5W (with IR LED lights ON)/Max power:11W (with Pan & Tilt ON)
    Operating conditionTemperature: -10~50℃; Humidity: <90%
    WeightNet: 472g(Note: in kind prevail)
