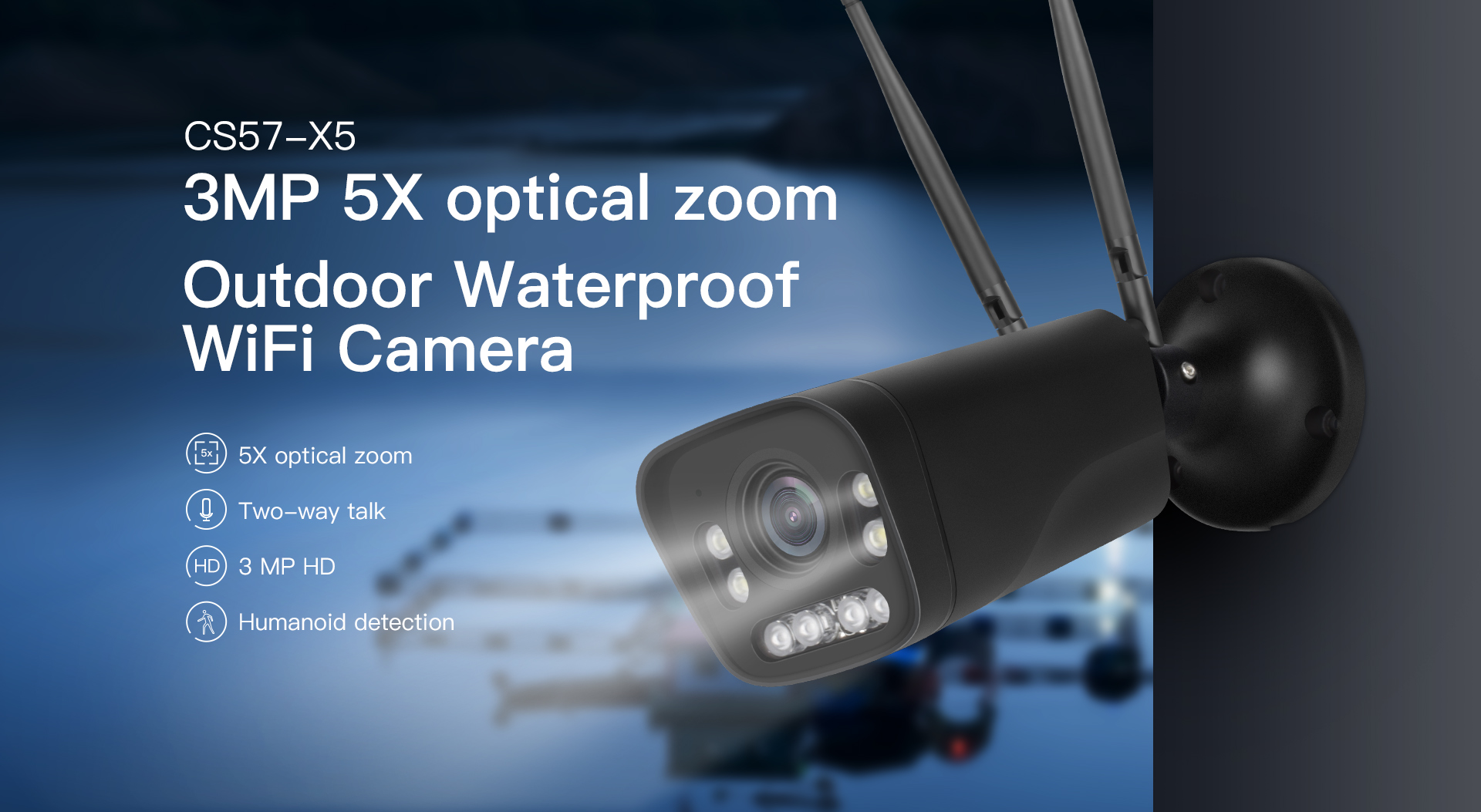

CS57-X5

Detail Specs Videos
  • Support
  • SortsTypeParameters
    System        Operating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CollectionCPU/Image sensor1/2.9 inch progressive scan CMOS sensor
    Minimum illumination0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle3.5-9.5mm zoom lens /  41~110° Diagonal
    Night visionIR-CUT with auto-switching,4 pcs 850nm IR LED lights, 4 high-power LED lights; Irradiation distance: 15~20 m
      VideoCompression standardH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
      Data rateMain stream: 1296p@15fps(2304×1296)/1080p@30fps(1920×1080) Substream:360p@15fps(640×360)
    Bit rate/maximum frame rate128~4096kbps/30fps
    Image adjustmentBrightness and contrast are adjustable
      AudioInputBuilt-in -28dB microphone
    OutputBuilt-in 8Ω2W speaker
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateG.711/32kbps
      NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45 interface
    Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P,ONVIF etc.
    Wireless networkIEEE802.11b/g/n; Supports AP mode
    Wireless frequency2.4GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud Storage;NVR;NAS
    Alarm      Alarm detection    Supports Motion detection; Humanoid detection; Humanoid framing; Smoke sound detection; Absence detection; Delimitation detection
      Physical IndicatorsRated voltageDC12V±5%
    Operating conditionTemperature: -10~50℃; Humidity: <90%
    Weight(Note: in kind prevail)
