    SystemOperation systemEmbedded Linux
    Online visitorSupport 4 visitors at the same time
    CollectionImage sensor1/3 inch Progressive Scan CMOS
    Minimum illumination0.5Lux(Color mode),0.1Lux(B&W Mode)

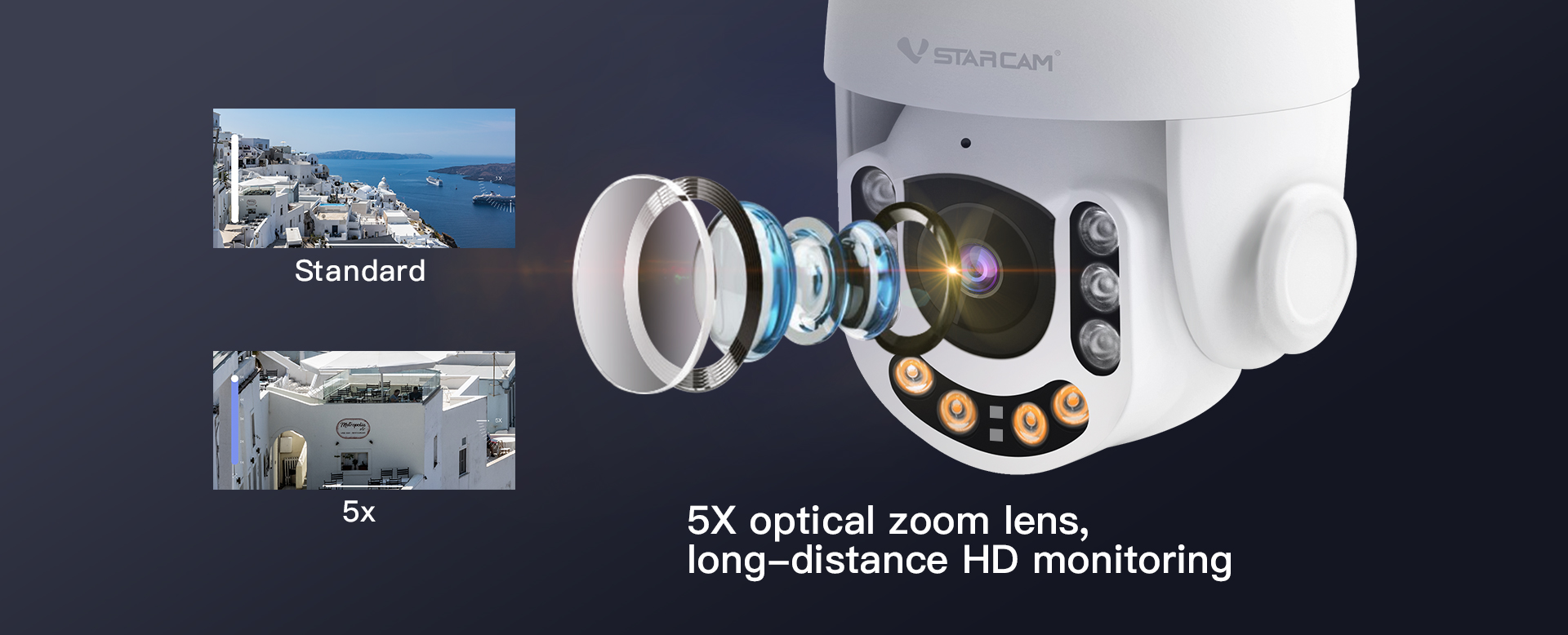

    Lens/View angle3.5-9.5mm zoom lens/ 99.3~40.5°(Diagonal)

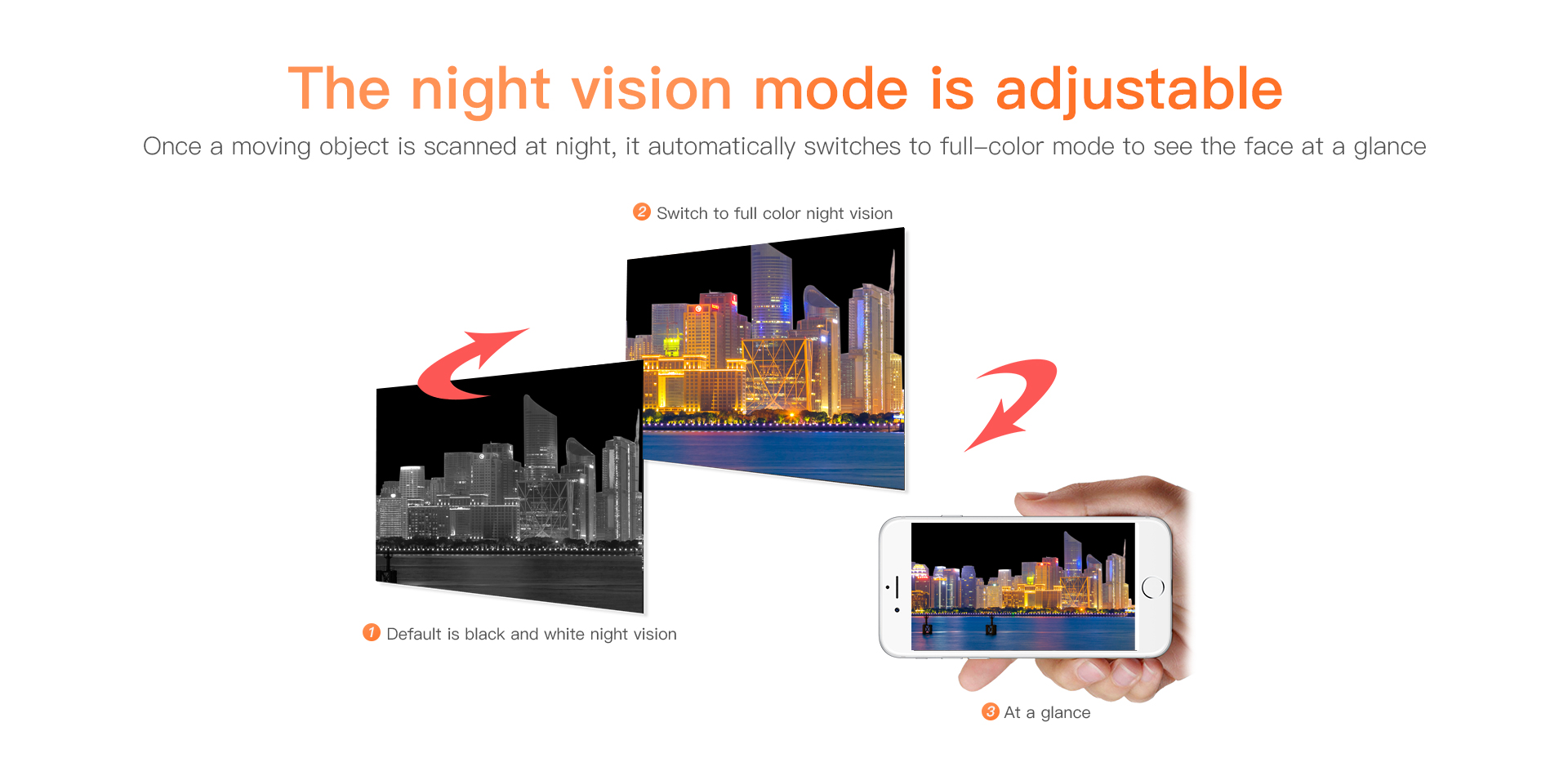

    Night visionIR-CUT with automatic switching, 6 pcs 850nm IR LED lights(1 pcs blue alarm light and 1 pcs red alarm light ) ; 6 pcs high-power LED lights, Irradiation distance:15-20 m
    VideoEncode formatH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Multiple streams2688*1520@15fps /640×360@15fps
    Bit Rate/Max Fps128~4096kbps/30pfs
    Image adjustmentBrightness and contrast can be adjusted
    AudioInputBuilt in -28±5dB microphone
    OutputBuilt in 8Ω2W speaker
    Sampling frequency /
    Compression standardADPCM/32kbps
    NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45 interface
    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4~ 2.4835GHz

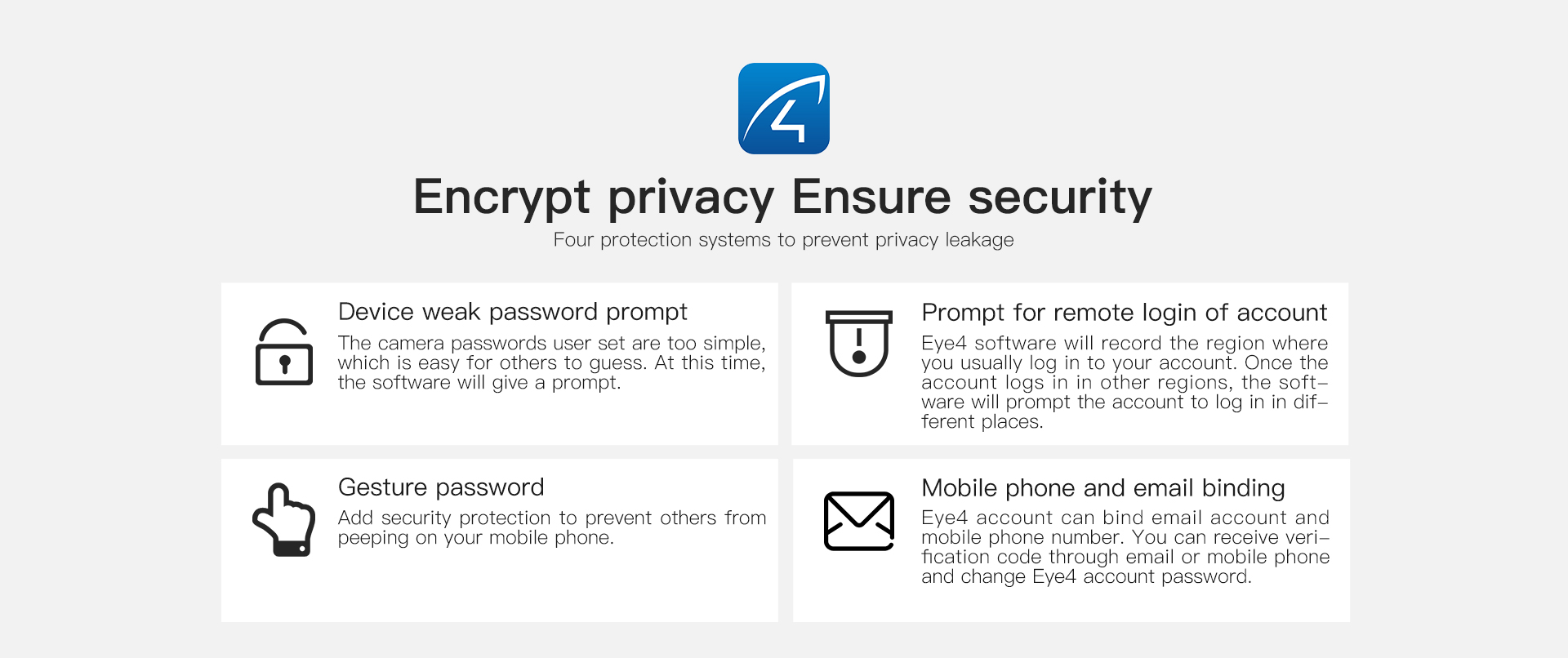

    Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption

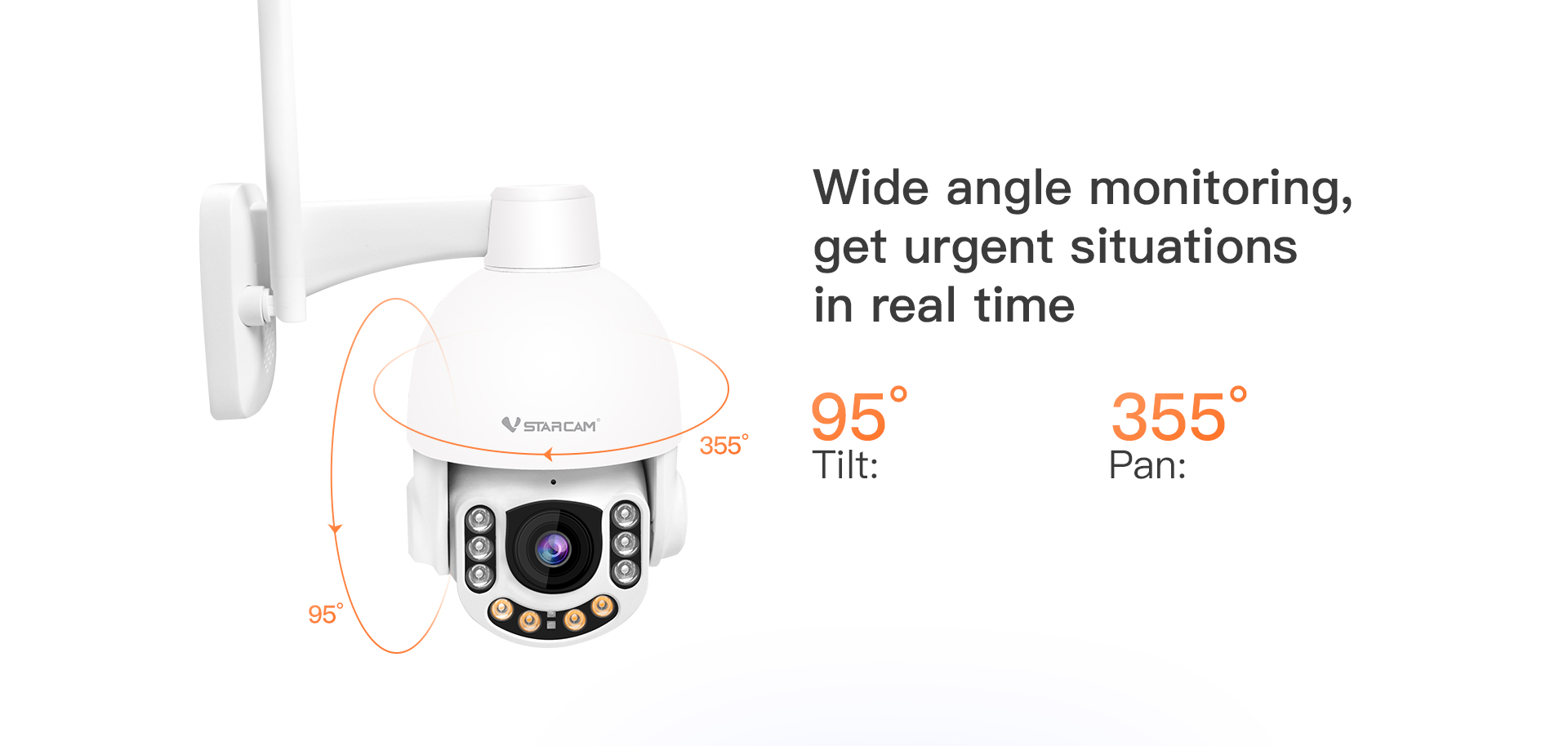

    Pan/TiltPan-tiltPan:355°, Tilt:95°
    Preset positionPC Client:support 16 positions,  Mobile APP: support 5 positions
    MemoryStorage functionSupport TF card, Maximum support 256GB; Cloud Storage; NVR;NAS
    AlarmAlarm detectionSupport Motion detection, Humanoid detection, Humanoid tracking, Absence detection
    Rated voltageDC12V 2A ±5%
    Power consumptionRated power: 4.08W (with IR LED light on)/ Max power: 13.8W
    Operating conditionTemperature:-10~50℃,Humidity:<90%
    WeightNet: 965g (Note: in kind prevail)
    Package size205x195x130mm(L*W*H)
