| Sorts | Type | Parameters |
| System System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Collection | CPU/Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor |
| Minimum illumination | 0.5 Lux（Color mode）, 0.1 Lux（B&W mode） | |
| Lens | 3.6mm@F2.0 | |
| Viewing angle | 97.2° Diagonal | |
| Night vision | IR-CUT with auto-switching，8 pcs duplex lamp( IR +LED lights); Irradiation distance: 15~20 m | |
| Video | Compression standard | H.264 main profile /Motion-JPEG/JPEG |
| Data rate | Main stream: 1296p(2304×1296)@15fps/1080p(1920×1080)@30fps Substream：360p(640×360)@15fps | |
| Bit rate/maximum frame rate | 128～4096kbps/30fps | |
| Image adjustment | Brightness and contrast are adjustable | |
| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/32kbps | |
| Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P，ONVIF etc. | |
| Wireless network | IEEE802.11b/g/n; Supports AP mode | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |

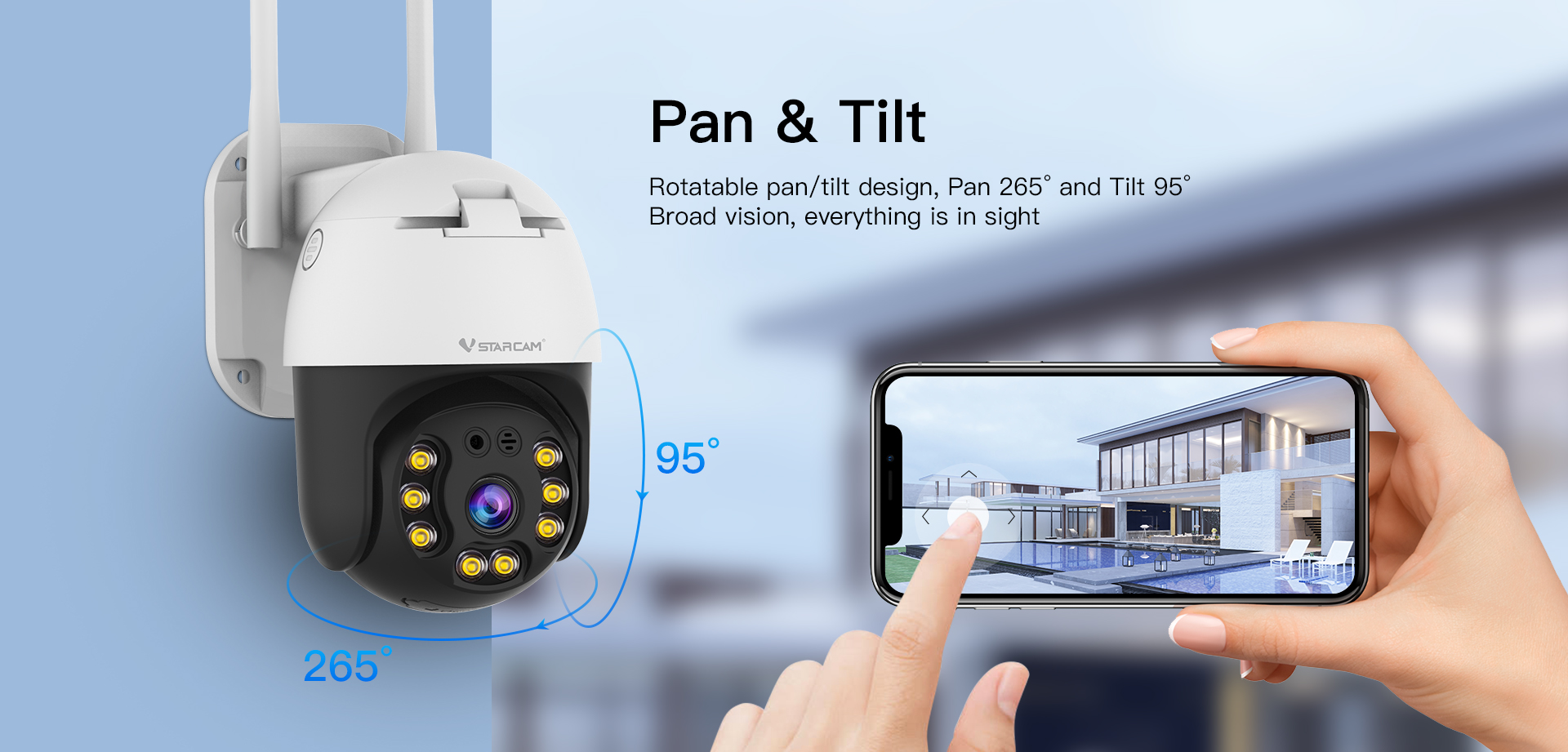

| Pan & Tilt | Pan & Tilt | Pan 265° /Tilt 95° |
| Preset position | Supports 16 (Mobile phone App supports 5) preset positions | |
| Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud Storage；NVR；NAS |
| Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid framing; Absence detection; |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Rated power: 3.5W (with IR LED lights ON)/ Max power(with Pan & Tilt ON): 9.5W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | Net: 480g （Note: in kind prevail） | |
| Package size | 205x195x130mm (LxWxH) |
