| System | Operation system | Embedded Linux OS |
| Online visitor | Support 4 visitors at the same time | |
| Image Capture | Image sensor | 1/2.9 inch Progressive Scan CMOS |
| Minimum Illumination | 0.5Lux（Color mode）,0.1Lux（B&W Mode） | |
| Lens/View angle | 3.5-9.5mm zoom lens/ 41 ~ 110°(Diagonal) | |
| Night vision | Automatic switching of dual filters, 6pcs 850nm infrared lights and 4pcs high-power spotlights, with irradiation distance of 15-20 meters | |
| Video | Encode format | H.264+/H.264 main profile/Motion-JPEG/JPEG |
| Streams | Main stream：1080p(1920×1080)@30fps/1296p(2304×1296)@15fps Substream：360p(640×360)@15fps | |
| Bit Rate/Max Fps | 128～4096kbps/30pfs | |
| Image adjustment | Brightness and contrast can be adjusted | |
| Audio | Input | Built in -28db±5dB microphone |
| Output | Built-in 8Ω2w speakers | |
| Sampling frequency / width | 8KHz/16bit | |
| Compression standard | ADPCM/32kbps | |
| Network | Ethernet | 10Mbps/100Mbps adaptive /RJ45 interface |
| Protocols | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P等 | |
| Wireless LAN | IEEE802.11b/g/n, Supports AP mode | |
| Wireless LAN Frequency | 2.4~ 2.4835GHz | |
| Wireless LAN security | 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption | |

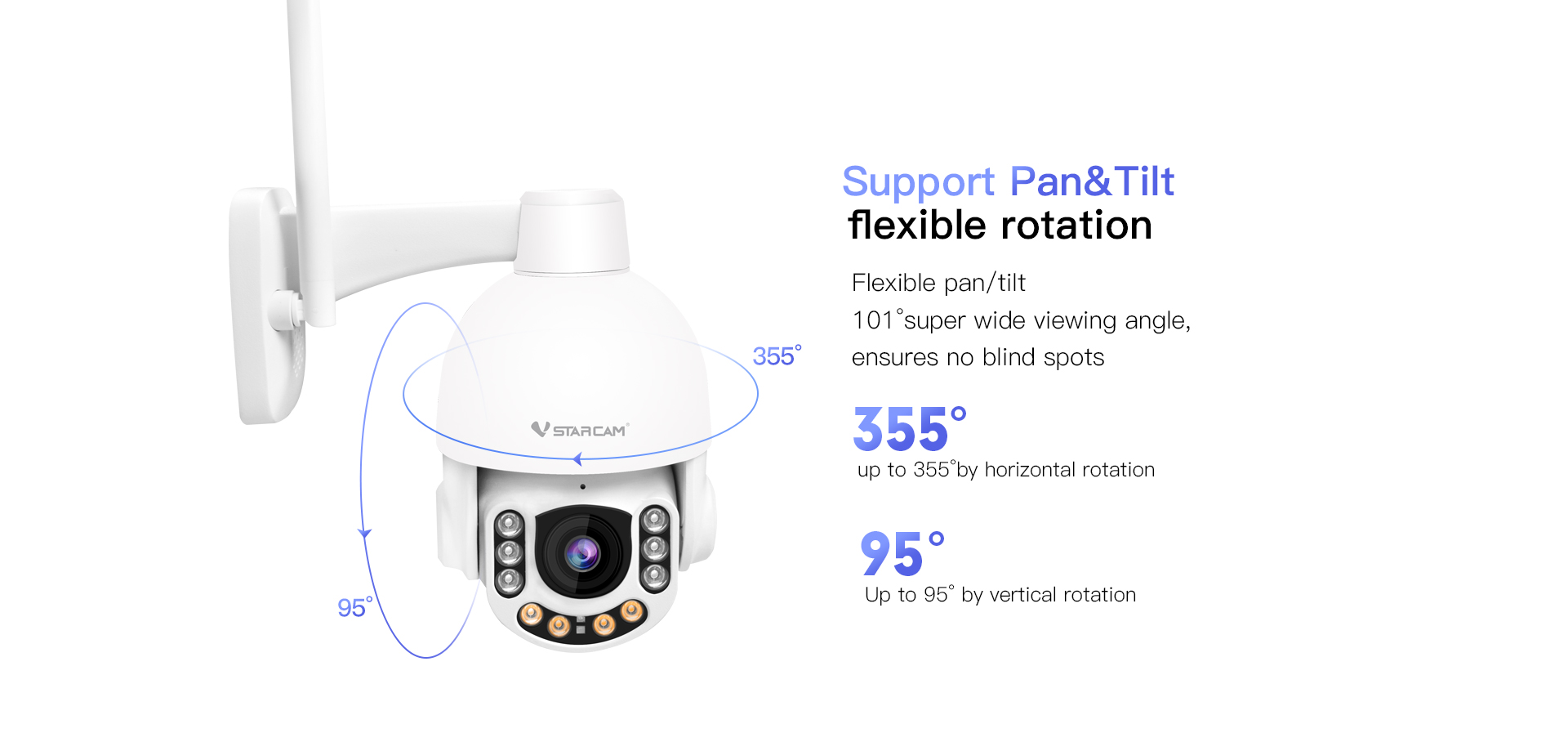

| Pan/Tilt | Pan-tilt | Pan：355°,tilt：95° |
| Preset position | PC Client：support 16 positions, Mobile APP:support 5 positions | |
| Memory | Socket | TF Push-push socket,Maximum support 256GB; Cloud Storage;NVR；NAS |
| Alarm | Alarm Trigger | Support motion detection, human detection, human tracking, absence detection |
| Physical Environmental | Rated voltage | DC12V 2A ±5% |
| Power consumption | Rated power: 3.9W (IR on)/ Max power: 12.3W | |
| Operating condition | Temperature:-10～50℃,humidity:＜90% | |
| Weight | Net: 915g Gross：TBD g(Note: in kind prevail) | |
| Package size | 205x195x130mm(L*W*H) |
