CS66Q-X18

Detail Specs Videos
  • Support
  • System Operation system Embedded Linux OS
    Online visitor Support 4 visitors at the same time
    Image  Capture Image sensor 1/3 inch Progressive Scan CMOS
    Minimum Illumination 0.5Lux(Color mode),0.1Lux(B&W Mode)

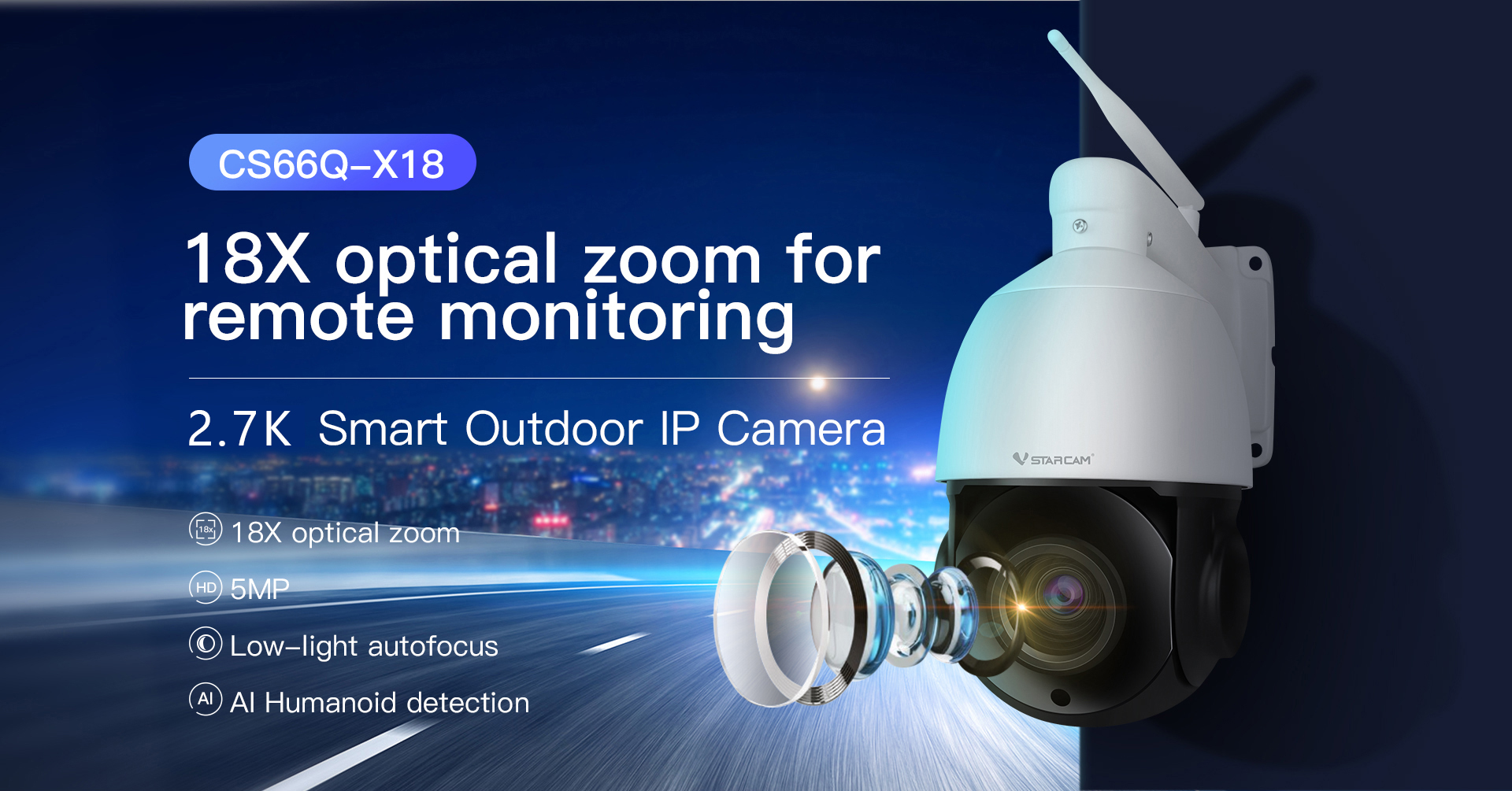

    Lens/View Angle 5.9mm~94.4mm zoom lens/62°@1X~4°@18X(diagonal)
    Night vision Automatic switching of dual filters, 6PCS 850nm IR LED, with irradiation distance of 20-50 meters
    Encode format H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Video Multi-Streams Main stream: 1520P (2688*1520)@25fps, Sub-stream: 360p(640×360)@25fps
    Bit Rate/Max Fps 128~4096kbps/25fps
    Image adjustment Brightness and contrast can be adjusted

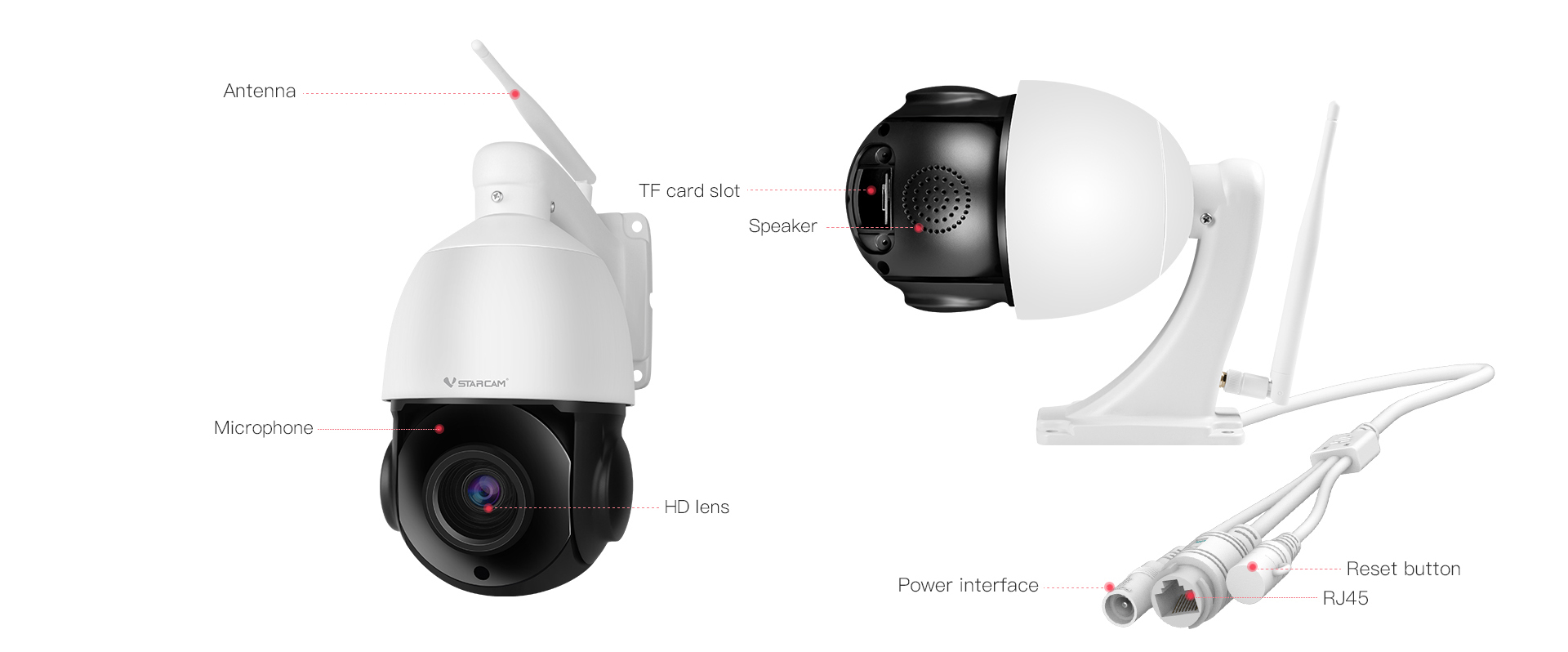

    Audio Input Built in -28dB microphone
    Output Built-in 8Ω2W speakers
    Sampling frequency /width 8KHz/16bit
    Compression standard G.711/32kbps

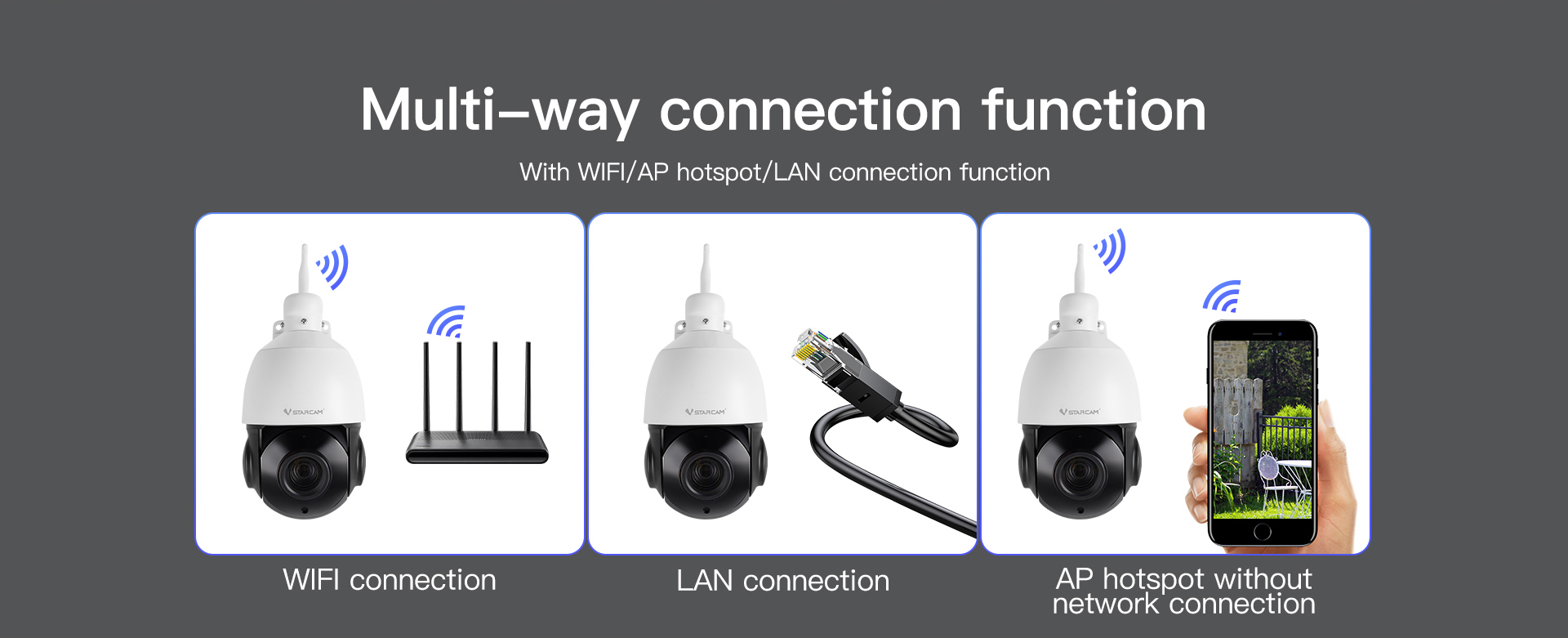

    Network Ethernet 10Mbps/100Mbps adaptive /RJ45 interface
    Protocols TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
    Wireless LAN IEEE802.11b/g/n
    Wireless LAN Frequency 2.4GHz
    Wireless LAN security 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
    Pan/Tilt Pan-tilt Pan:350° ,tilt: 100°
    Preset position PC APP:support 16 positions, Phone APP:support 5 positions
    Memory Socket TF Push-push socket,Maximum support 256GB; Cloud Storage;NVR;NAS
    Alarm Alarm Trigger Support Motion detection, Humanoid detection, Humanoid framing, Smoke sound detection, Absence detection,Delimitation detection
    Physical Environmental Rated voltage C12V 2A
    Power consumption Related power: 11.2 W(IR on) Max power: 16.8W
    Operating condition Temperature:-10~50℃,humidity:<90%
    Weight Net weight: 1560g Gross weight: 2060g(Note: in kind prevail)
    Package size 280x230x155mm(L*W*H)

    CS66Q-X18 Smart Waterproof HD Zoom Camera
