Sorts | Type | Parameters |
System | Operating system | Embedded Linux |
Online visitor | Supports 4 visitors at the same time |
Collection | Image sensor | 1/2.9 inch 1080p progressive scan CMOS sensor |
Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) |

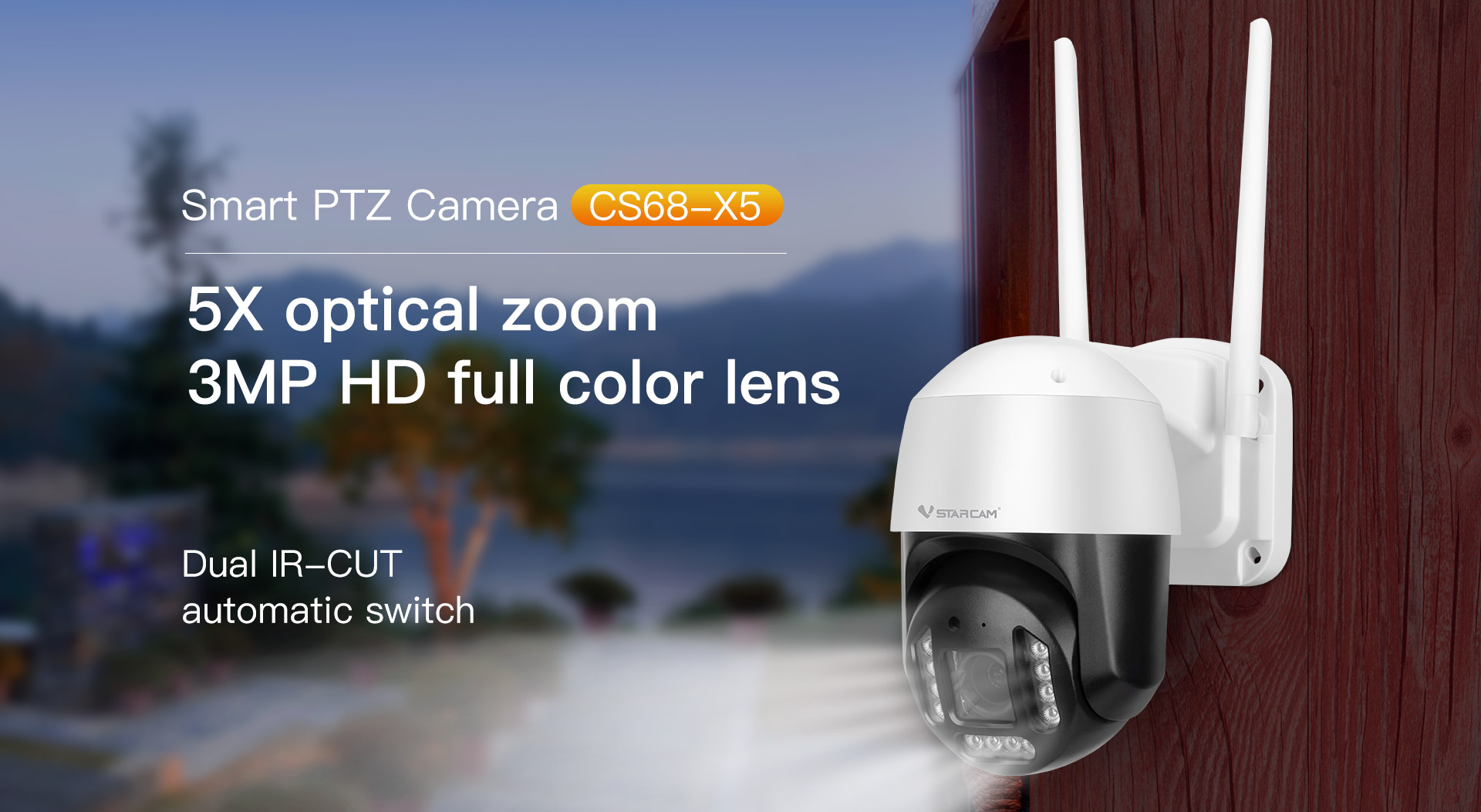

Lens/Viewing angle | 3.5-9.5mm zoom lens/Diagonal visibility 41~110° |
Night vision | IR-CUT with auto-switching,6 pcs 850nm IR LED lights, 6 pcs high-power LED lights; Irradiation distance: 15~20 m |
Video | Compression standard | H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
Multi-stream | Main stream:1080p(1920×1080)@30fps/1296p(2304×1296)@15fps Substream:360p(640×360)@15fps |
Bit rate | 128~4096kbps |
Maximum frame rate | 30fps |
Image adjustment | Brightness and contrast are adjustable |
Audio | Input | Built-in -28±5dB microphone |
Output | Built-in 8Ω2W speaker |
Sampling frequency/bit width | 8KHz/16bit |
Compression standard/Bit Rate | ADPCM/32kbps |
Network | Network interface | 10Mbps/100Mbps adaptive /RJ45 |
Network protocol | TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P etc. |
Wireless network | IEEE802.11b/g/n |
Wireless frequency | 2.4~2.4835GHz |
Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |

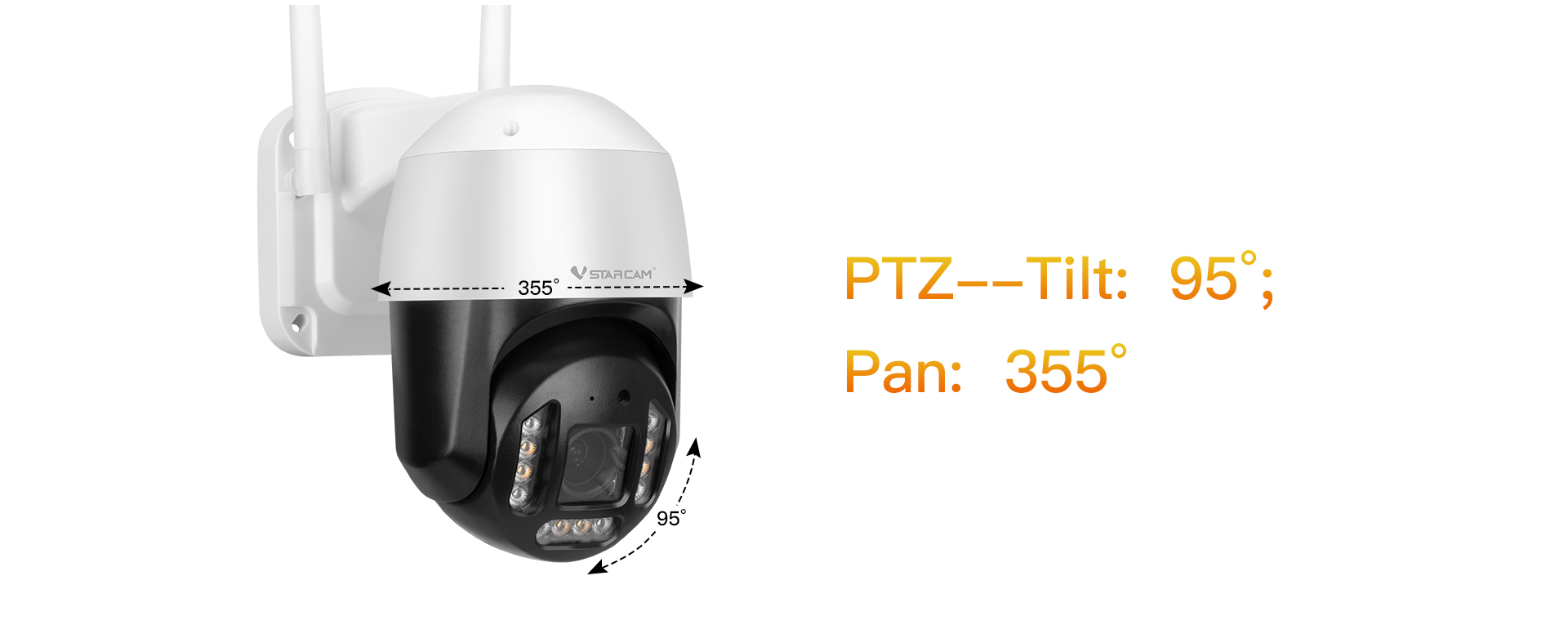

Pan & Tilt | Pan & Tilt | Pan 355°/Tilt 95° |
Preset position | Supports 16(Mobile phone App supports 5) preset positions |
Storage | Storage functions | Supports T-Flash card(max supports 256GB); Cloud storage; NVR;NAS |
Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid tracking;Absence detection alarm |
Physical Indicators | Rated voltage | DC12V 2A ±5% |
Power consumption | Rated power:3.9W(with IR LED lights ON)/Max power:12.3 W |
Operating condition | Temperature: -10~50℃; Humidity: <90% |
Weight | Net:915g Gross: TBD(Note: in kind prevail) |
Size | 257x208x130mm(L×W×H) |
