  • SortsTypeParameters
    SystemOperating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CPU/Image sensor1/3 inch progressive scan CMOS sensor
    Minimum illumination0.5 Lux(Color mode), 0.1 Lux(B&W mode)

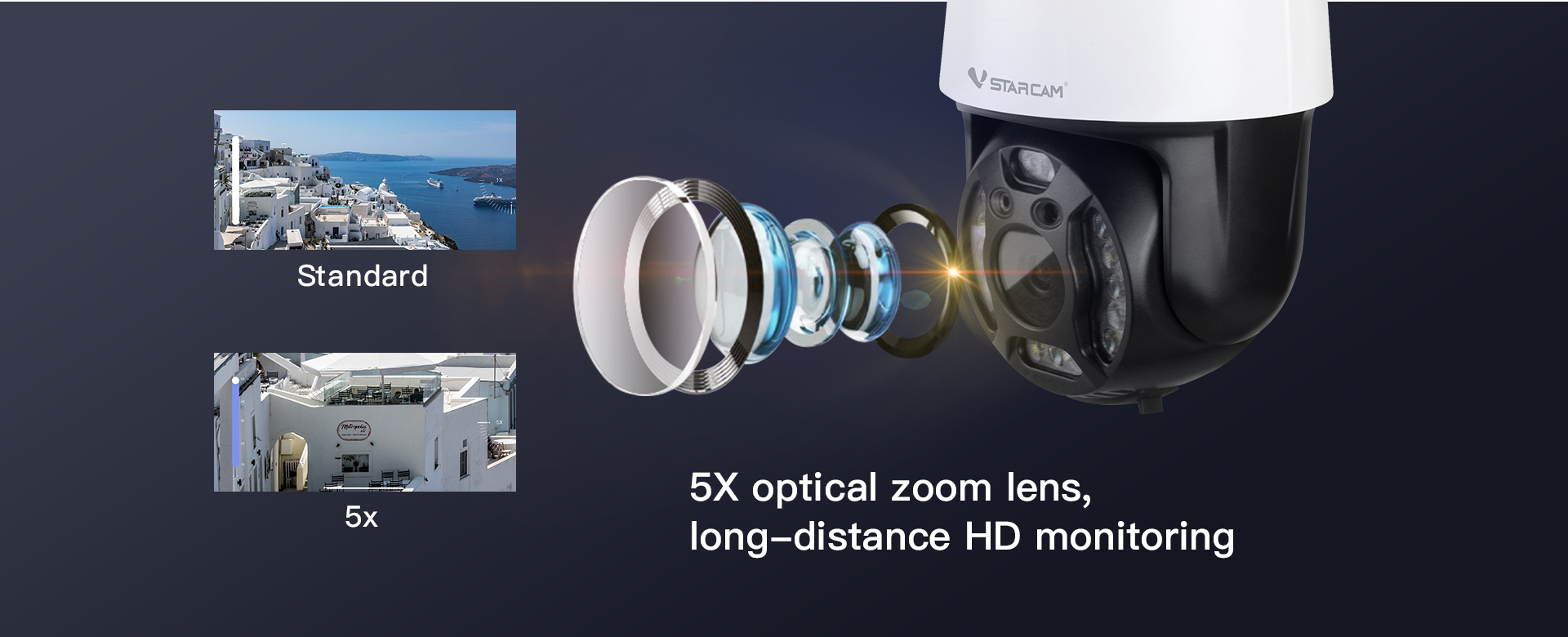

    Lens/Viewing angle3.5-9.5mm zoom lens/99.3~40.5°Diagonal
    Night visionIR-CUT with auto-switching,9 pcs LED lights, 6 pcs IR LED lights;
     Irradiation distance: 20~30 m
    Compression standardH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Data RateMain stream: 2688*1520@15fps/1440p(2560×1440)@30fps
    Bit rate128~4096kbps
    Maximum frame rate30fps
    Image adjustmentBrightness and contrast are adjustable
    AudioInputBuilt-in -38dB microphone
    OutputBuilt-in 8Ω2W speaker
    Sampling frequency/bit  width8KHz/16bit
    Compression standard/Bit RateG.711/32kbps
    NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45
    Network protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
    Wireless networkIEEE802.11b/g/n;Supports AP mode
    Wireless frequency2.4GHz\5GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data

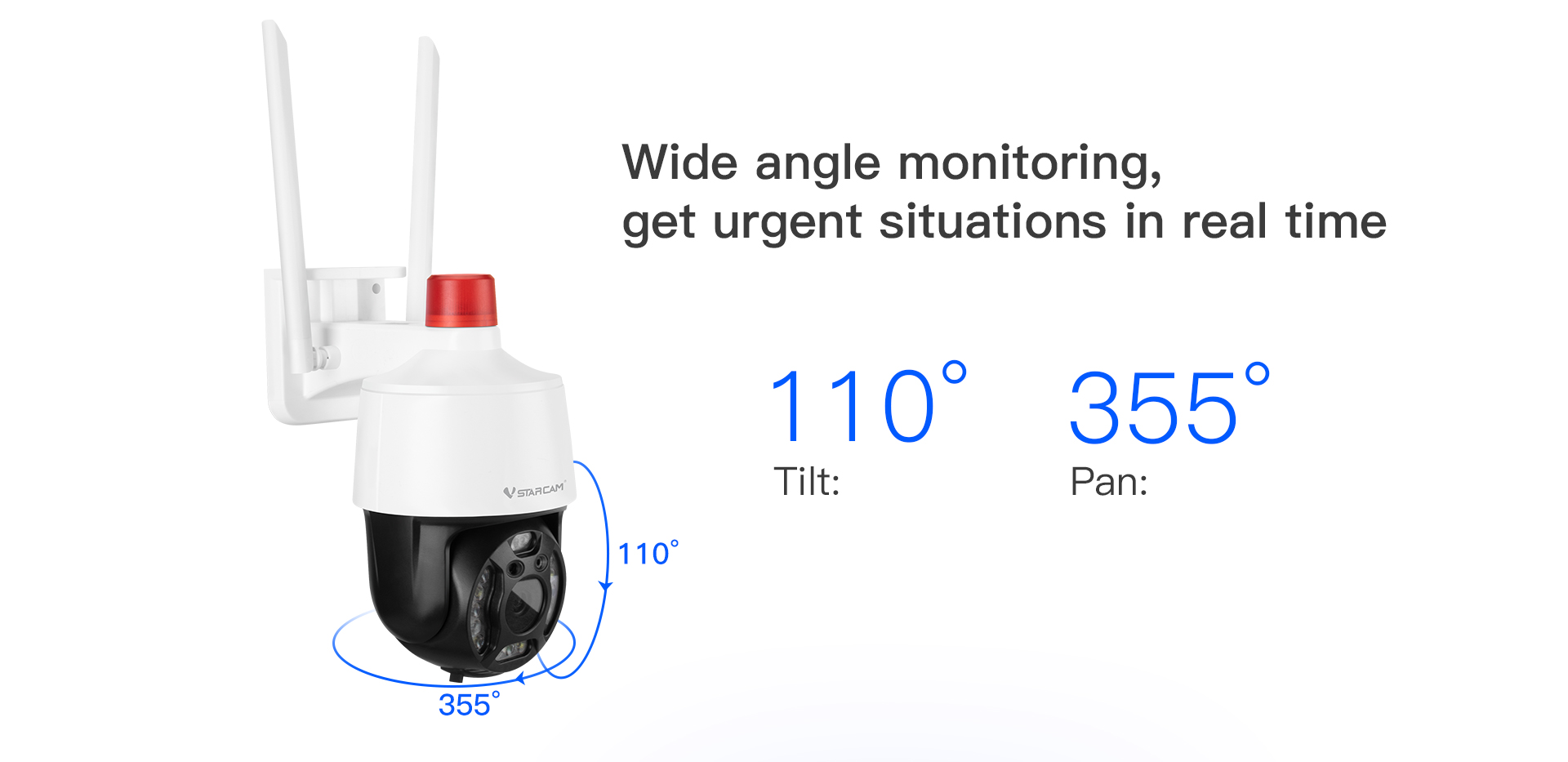

    Pan & TiltPan & TiltPan 268° /Tilt 110°
    Preset positionSupports 16 (Mobile phone App only supports 5) preset positions
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
    AlarmAlarm detectionSupports Motion detection; Humanoid detection; Humanoid tracking;  Absence detection alarm;
    Physical IndicatorsRated voltageDC12V 2A ±5%
    Power consumptionRated power:4.6W (with IR LED ON)/Max power:14W
    Operating conditionTemperature: -10~50℃, Humidity:  <90%
    WeightNet: 610g(Note: in kind prevail)
    Size(230x205x140)mm LxWxH
