  • SortsTypeParameters
    SystemOperating systemEmbedded Linux
    Online visitorSupports 4 visitors at the same time
    CollectionImage sensor1/3"CMOS

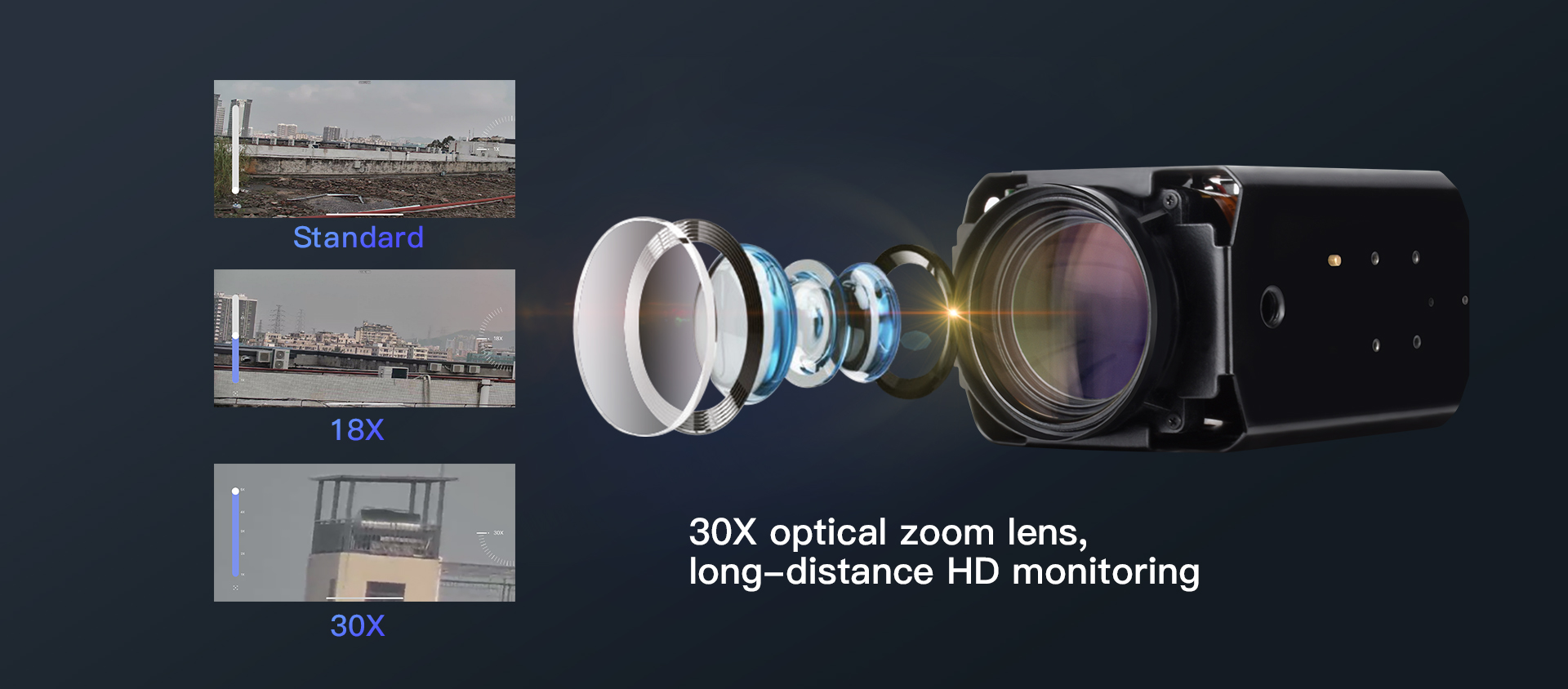

    Lens4.7-141mm zoom lens
    Minimum illumination0.1 Lux(B&W mode),0.5 Lux(Color mode)
    Viewing angleD:64.2°@1X,3.9°@30X
    Night visionIR-CUT with auto-switching,6 pcs 850nm IR LED lights+3 pcs laser lights; Irradiation distance: 100~200 m
    VideoCompression standardH.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
    Multi-streamMain stream: 1520P(2688*1520)@15fps/1440p(2560×1440)@30fps Substream: 360p(640×360)@15fps
    Bit rate128~4096kbps
    Maximum frame rate30fps
    Image adjustmentBrightness and contrast are adjustable

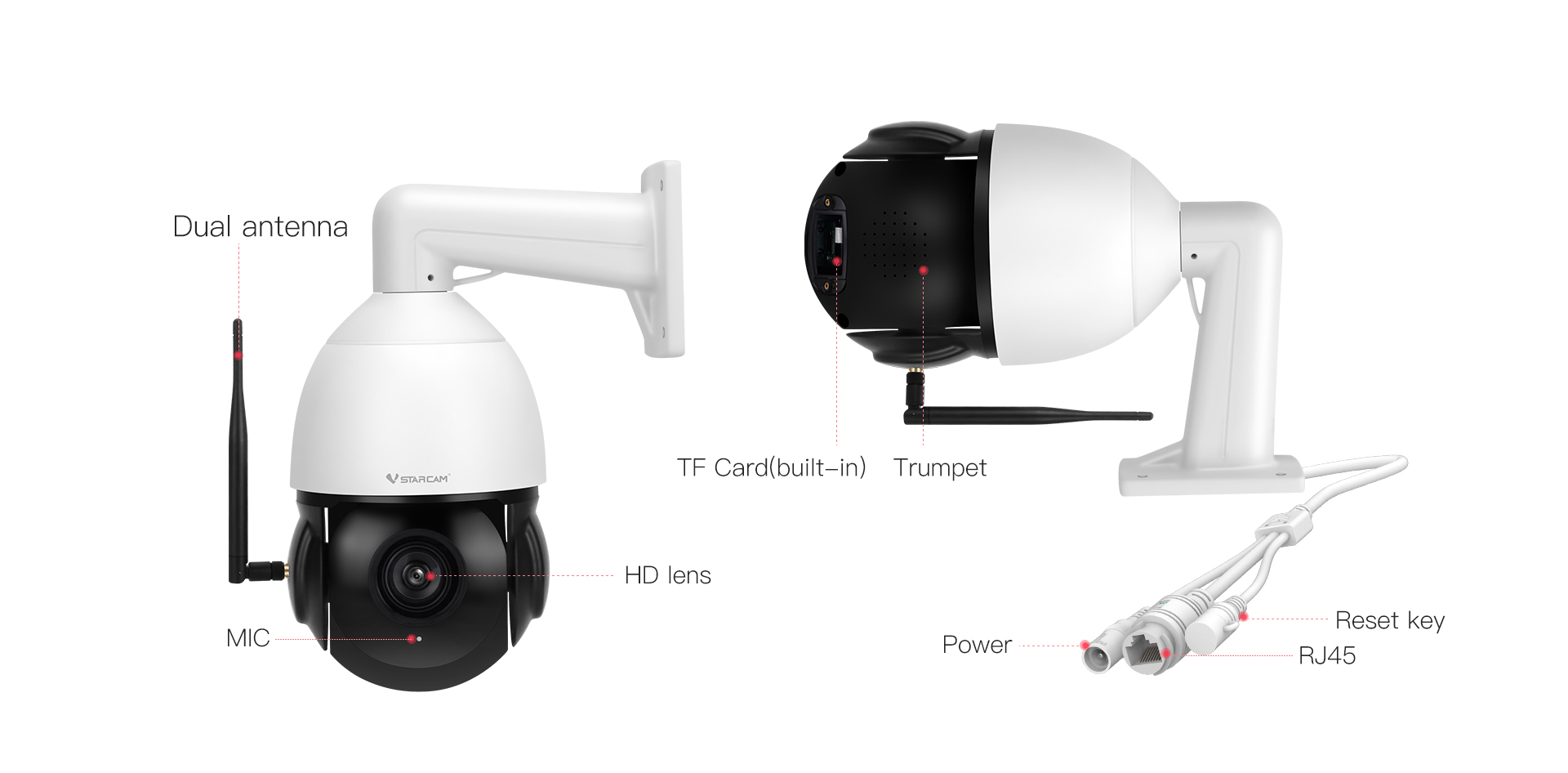

    AudioInputBuilt-in -28dB microphone
    OutputBuilt-in 8Ω2 W speaker
    Sampling frequency/bit width8KHz/16bit
    Compression standard/Bit RateG.711/32kbps
    NetworkNetwork interface10Mbps/100Mbps adaptive /RJ45
    Wireless networkIEEE802.11b/g/n;AP
    Wireless frequency2.4G( WiFi6 )
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

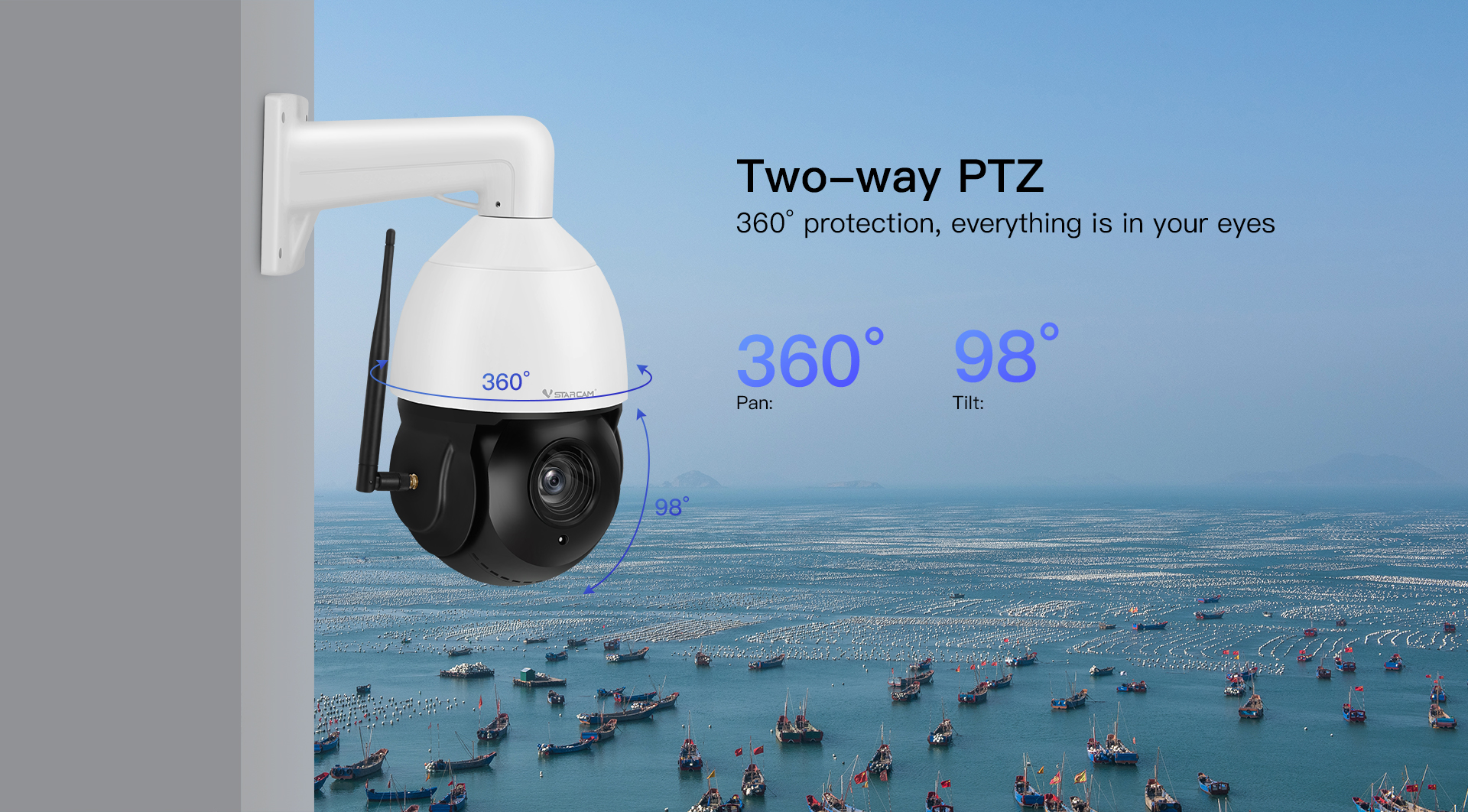

    Pan & TiltPan & TiltPan 360°/Tilt 98°
    Preset positionSupports 16(Mobile phone App supports 5) preset positions
    StorageStorage functionsSupports T-Flash card(max supports 256GB); Cloud storage; NVR;NAS

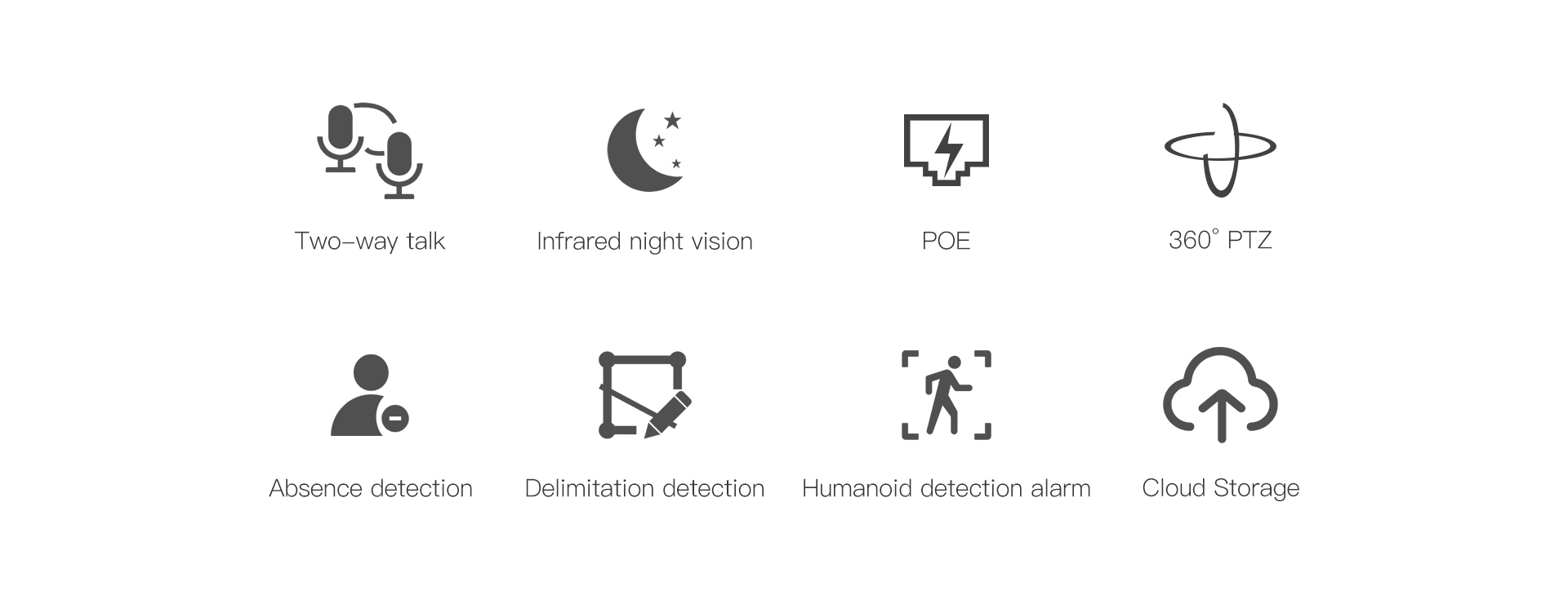

      Alarm  Alarm detectionSupports Motion detection; Humanoid detection; Humanoid framing; Siren alarm; Absence detection; Delimitation detection

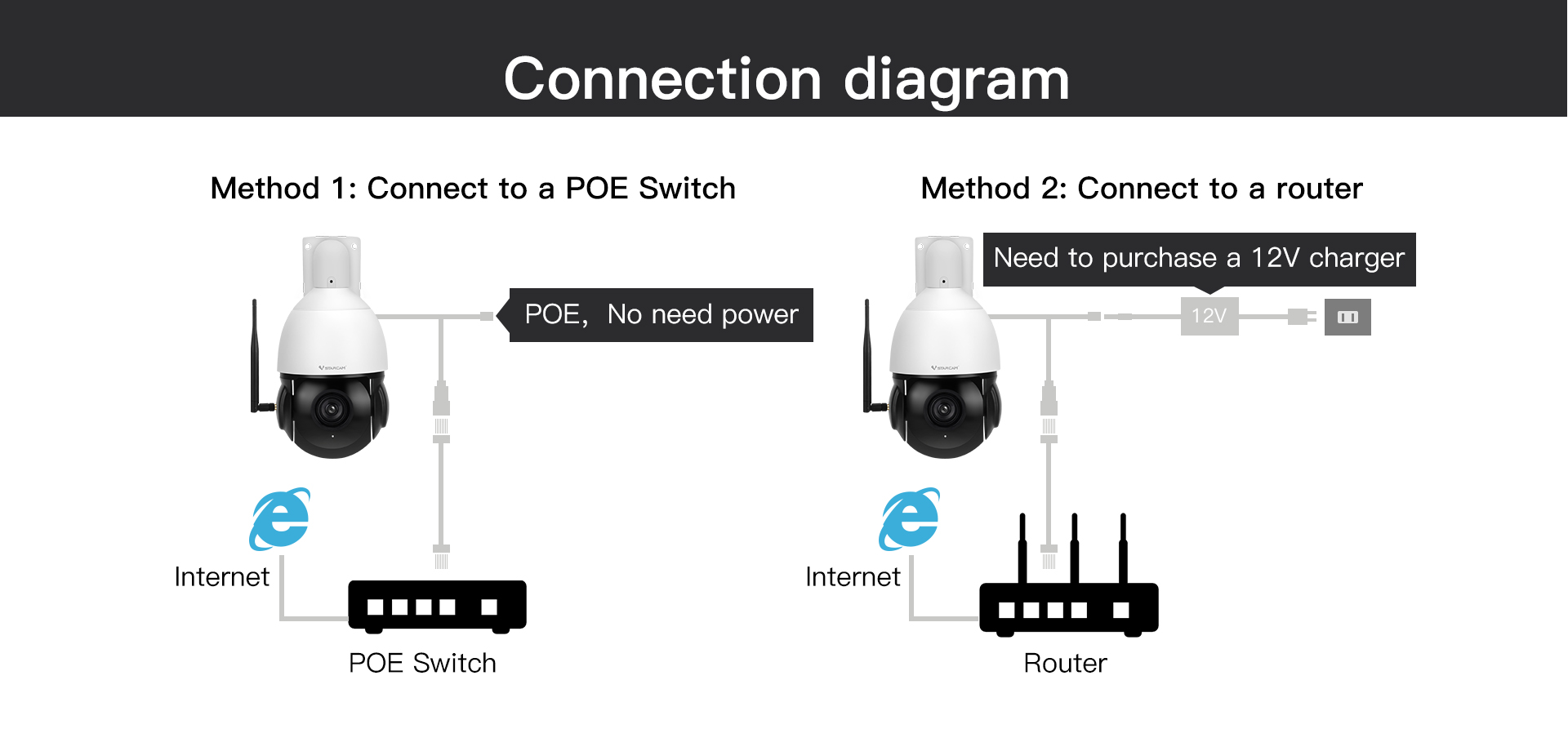

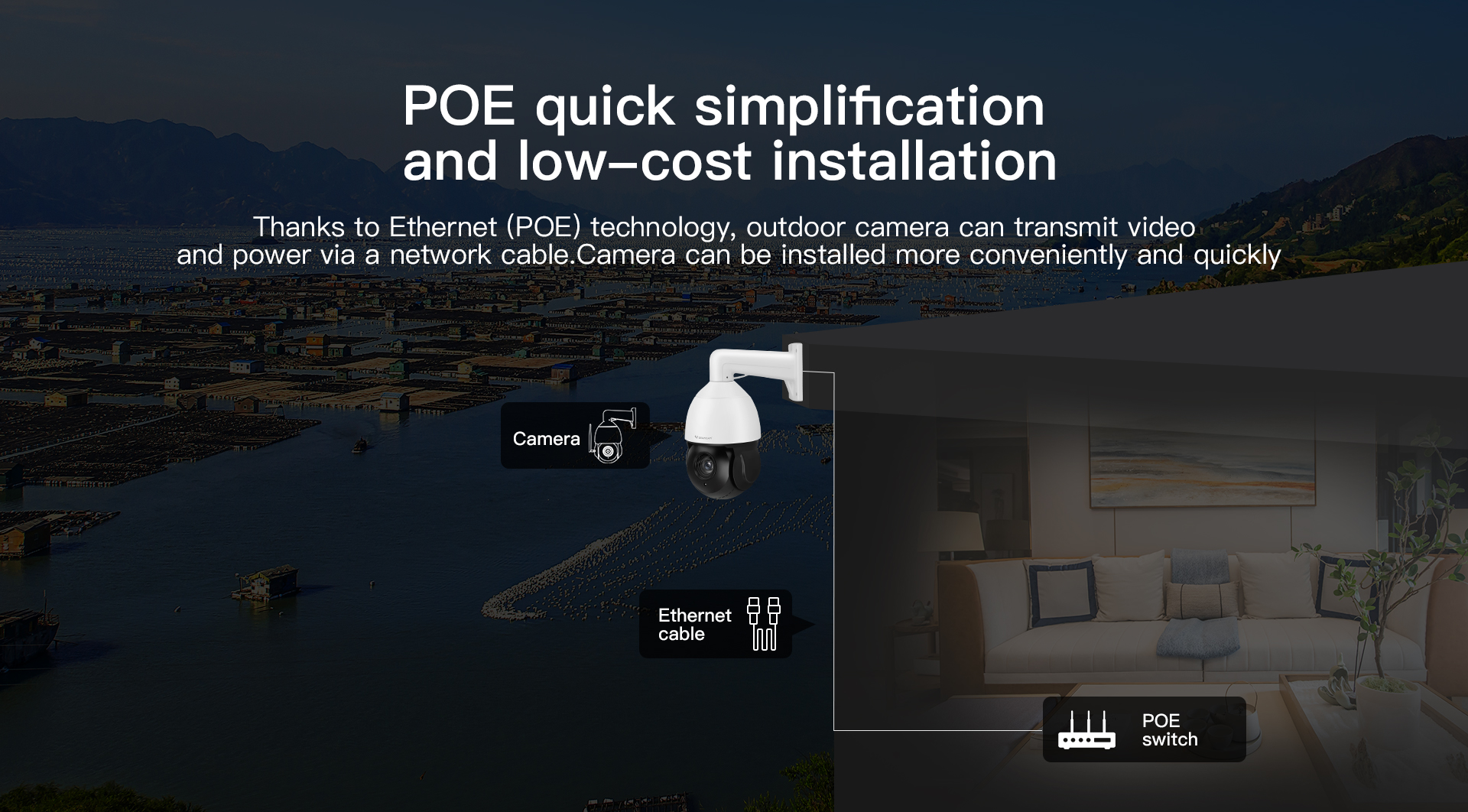

    Physical IndicatorsRated voltageDC12V or POE(48V)
    Power consumptionStandby power: 2.2W, Rated power:12.8 W(with IR LED lights ON)/Max power:22 W

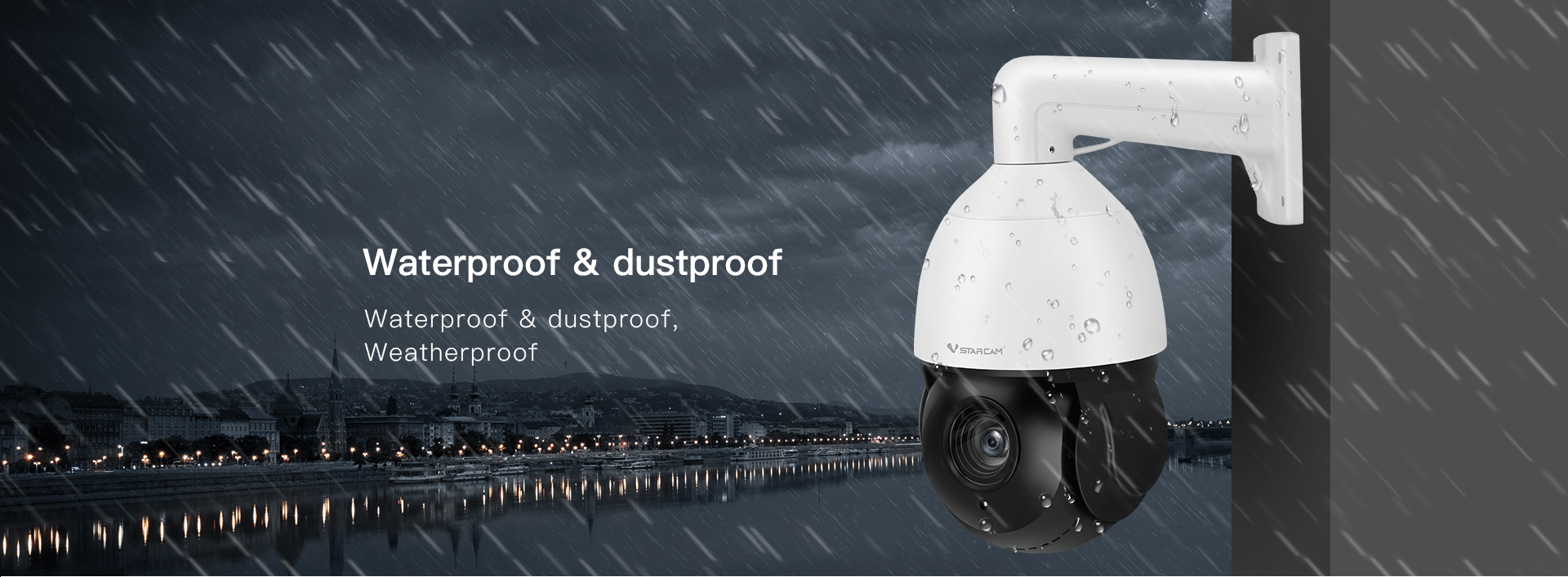

    Waterproof standardIP65
    Operating conditionTemperature: -10~50℃; Humidity: <90%
    WeightNet:2400g (Note: in kind prevail)

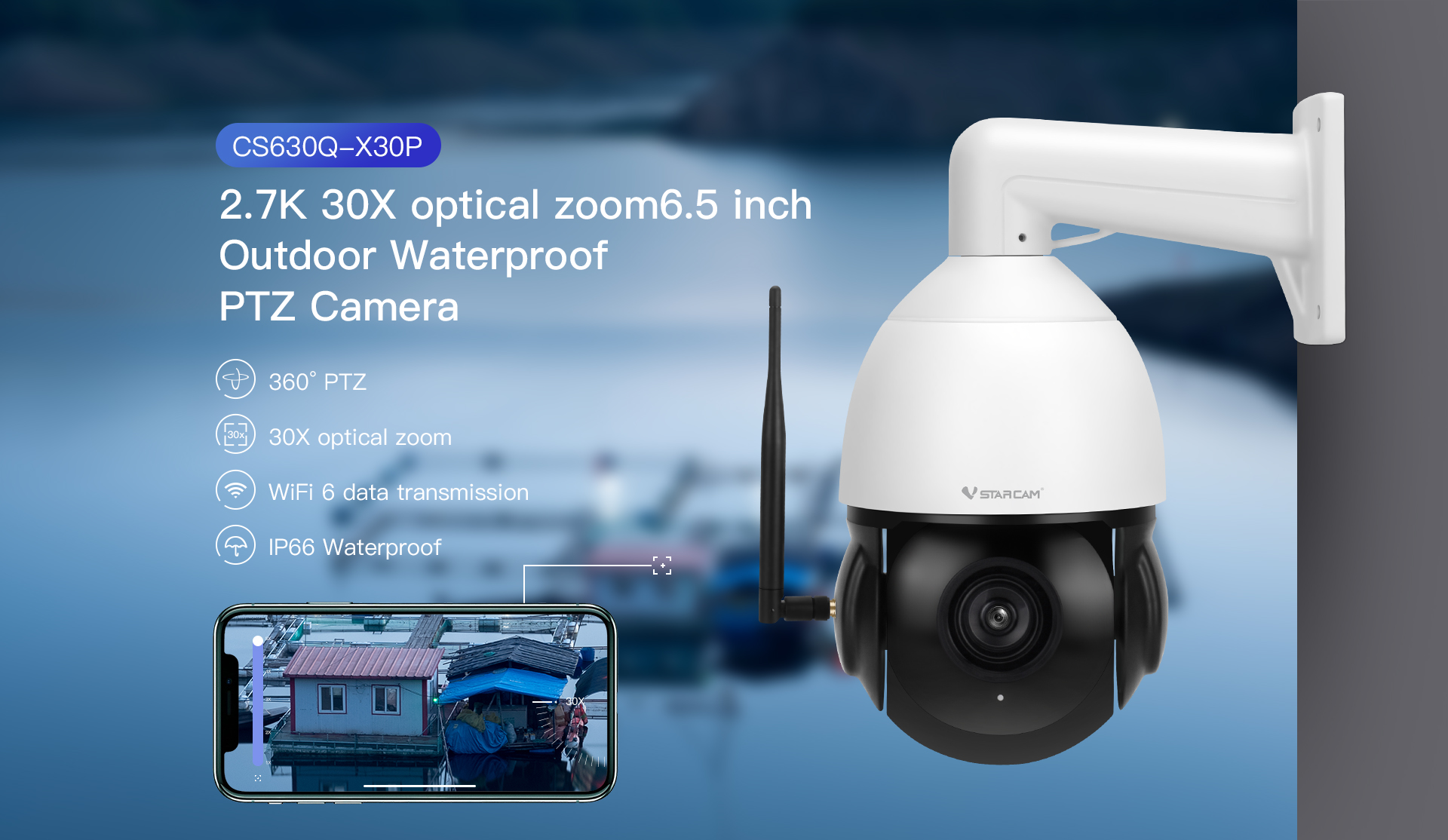

    30X optical zoom6.5 inch PTZ camera CS630Q-X30P
