CB54

Detail Specs Videos
  • Support

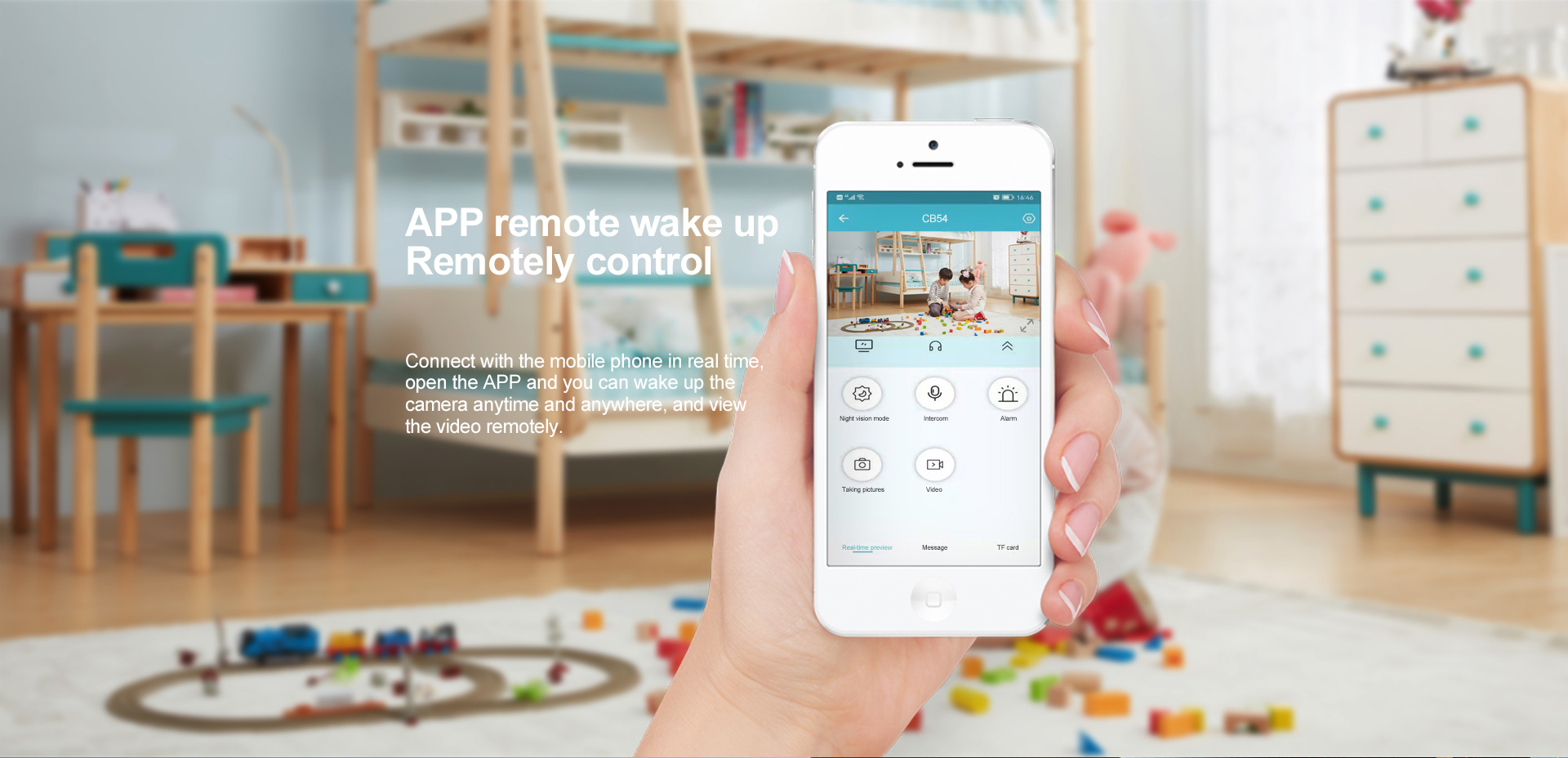

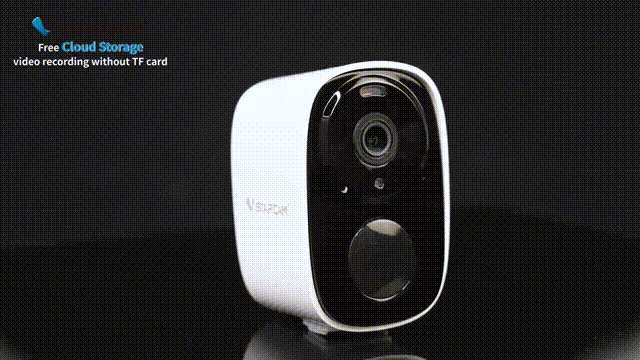

  • ✮ Wireless connection ✮ Remote active waking up, Two-way talk ✮ Start quickly & start recording within 400ms ✮ Smart PIR human detection, Smart alarm pushing ✮ 5000mAh battery powered, Low power reminding ✮ Low power system optimization ✮ Free 3 days Cloud Storage alarm video ✮Support external 3V/5V solar panels, continuous transmission power supply, Never power off

    CategoryTypeParameters
    SystemOperating systemLinux

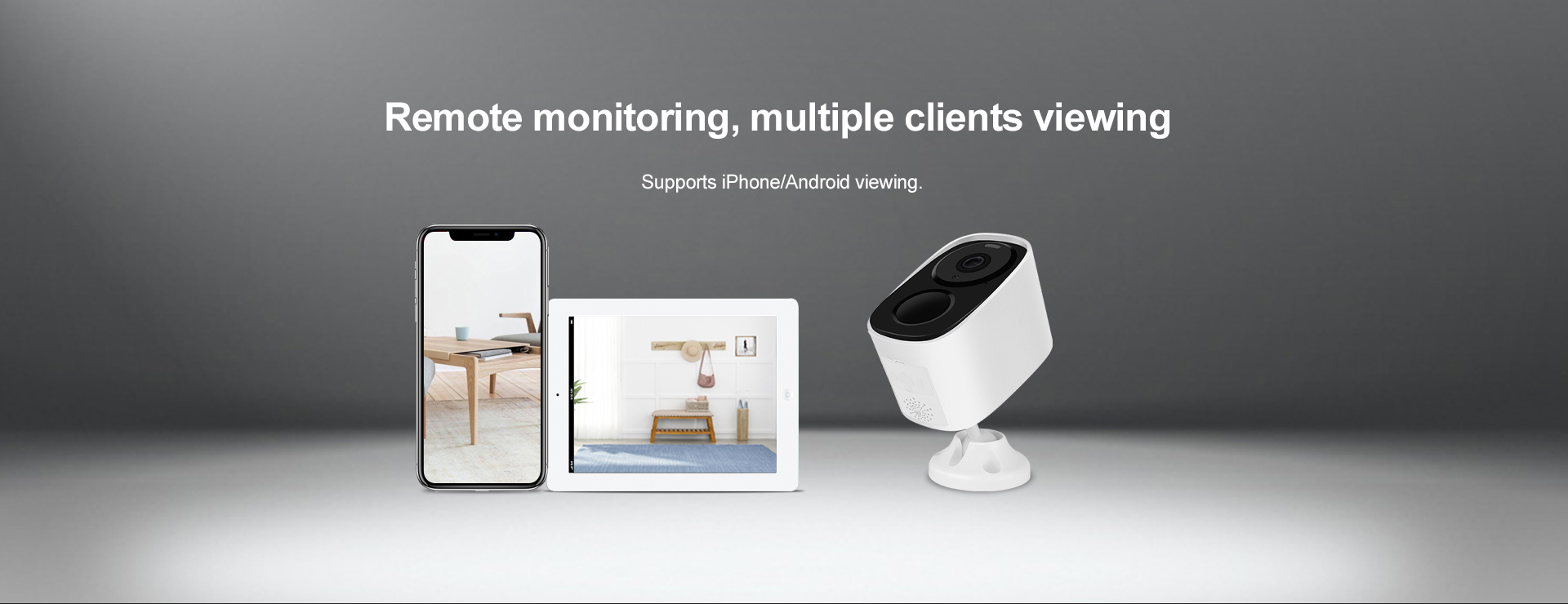

    Online visitorsSupport 4 visitors online at the same time
    AppO-KAM
    CollectionProcessorT31ZL  1.5GHZ
    Memory512Mb
    Image sensorGC2063, 2MP,1/2.9 CMOS (pixel optional, PCB compatible)
    Minimum illumination0.8Lux/F1.4 (Color mode), 0.3Lux/F1.4 (B&W  mode)
    LensStandard lens 4mm,1G3P, IR-CUT integrated
    Sensor performanceSupport Automatic white balance, Automatic gain control, Automatic backlight compensation
    Viewing angleD110 ° diagonal
    VideoNight visionBlack and white night vision, Automatic switching of IR-CUT, 6 pcs 850nm IR LED lights, Irradiation distance: 5 ~ 10m
    Compression standardH.265 /H.264 /MJPEF/JPEG
    Multi code stream1080p / 15fps, 360p, JPEG capture
    IR controlIR turned on-- the Night vision ON; IR, ICR automatic detection; IR turned off-- the Night vision function disabled/ IR always OFF, ICR is fixed in the Day vision mode
    Bit rateCBR / VBR two rate control modes, and the output rate range is 128 ~ 4096kbps
    Image adjustmentBrightness, contrast, vertical, horizontal adjustable, OSD display
    AudioInputBuilt-in - 38dB microphone
    OutputBuilt-in 8 Ω 1W speaker
    Sampling frequency / Bit width8KHz/16bit
    Compression standard / Bit rateG711A
    NetworkNetwork protocolTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P,IPV4 etc
    Wireless networkIEEE802.11b/g/n
    Wireless frequency2.4~2.4835GHz
    Wireless security encryption64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

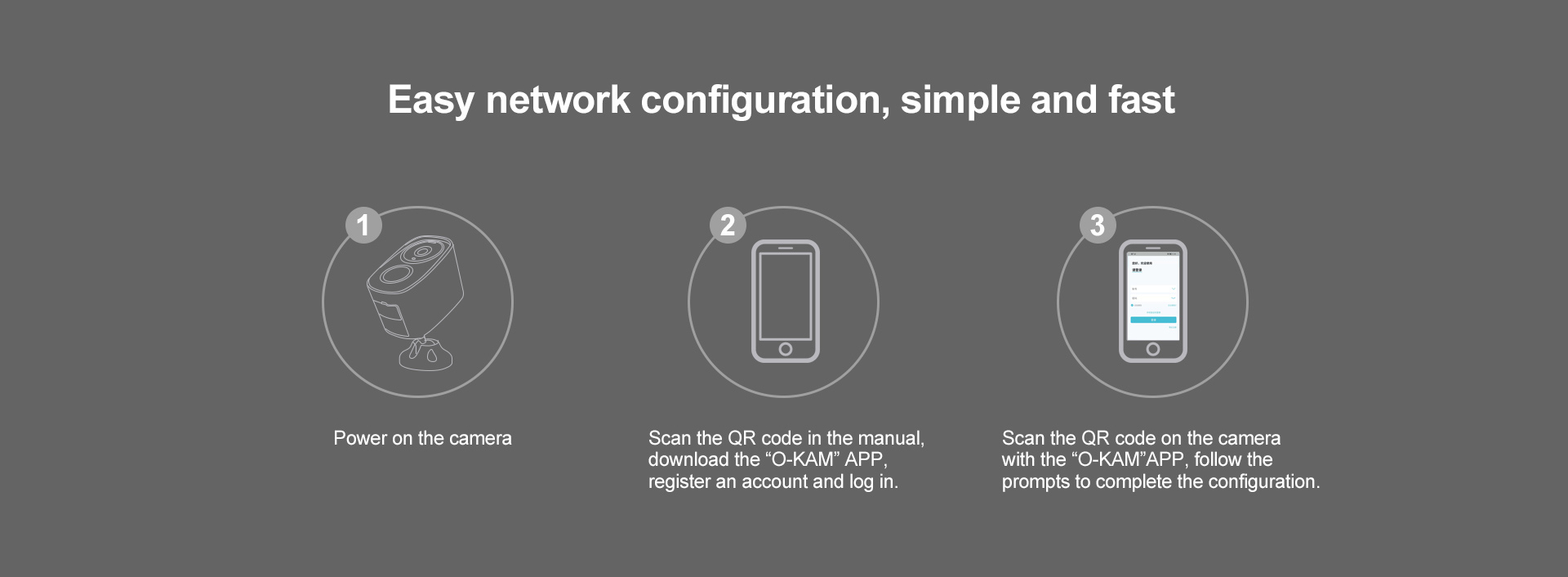

    Wireless connectionAP hotspot network configuration, QR code network configuration
    KeyKey 1Power ON/OFF
    Reset KeyLong Press to restore the factory settings
    StorageStorage functionSupport T-Flash card (up to 256GB)
    AlarmAlarm detectionSupport PIR human detection; Detection distance: 6m
    Physical indicatorsRated voltageDC5V±5%
    Power supplyComes with 5000mAh battery power supply, 2*18650, supports external 3V, 5V solar panels
    Power consumptionSleep current 500uA, Working current: 390mA
    Work environmentWorking temperature: - 10 ~ 55 ℃, Working humidity < 90%
    WeightGross weight: TBD (Note: in kind prevail)
    SizeTBD

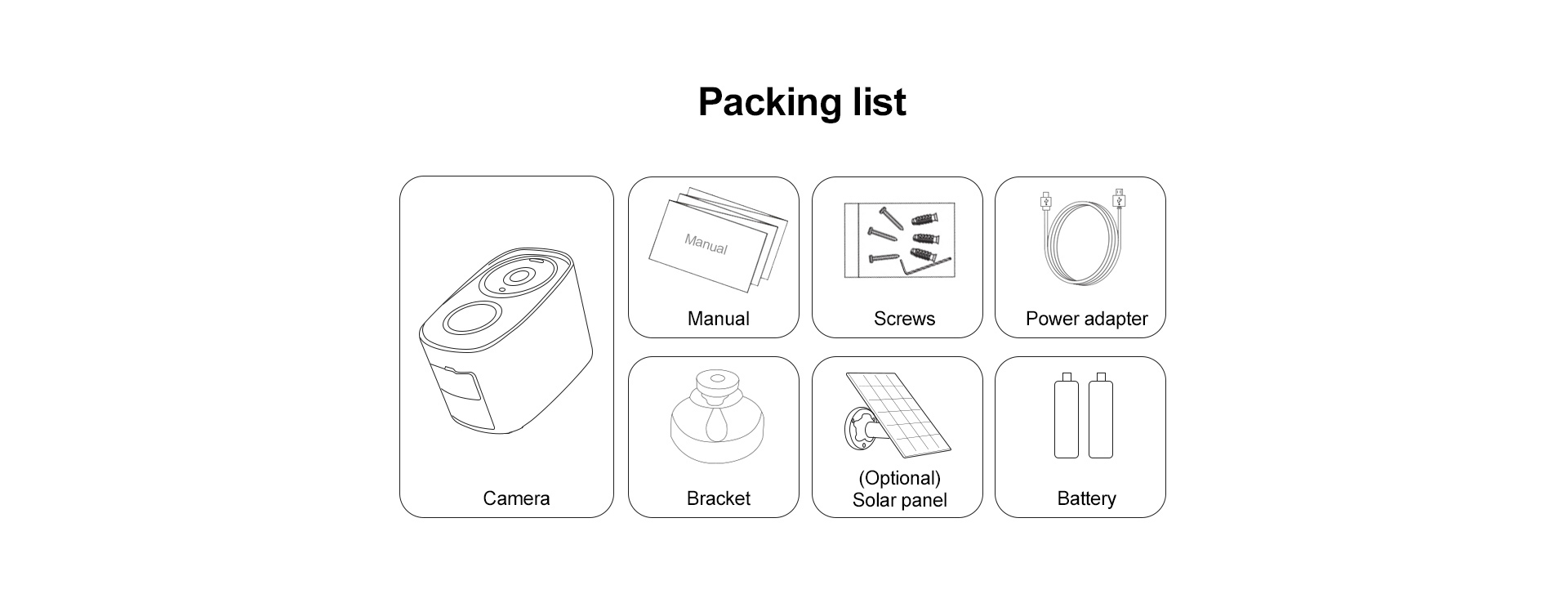

    Packing listCamera * 1, Bracket * 1, MICRO USB* 1, Manual * 1,(Solar panel*1, Solar panel bracket*1 optional)

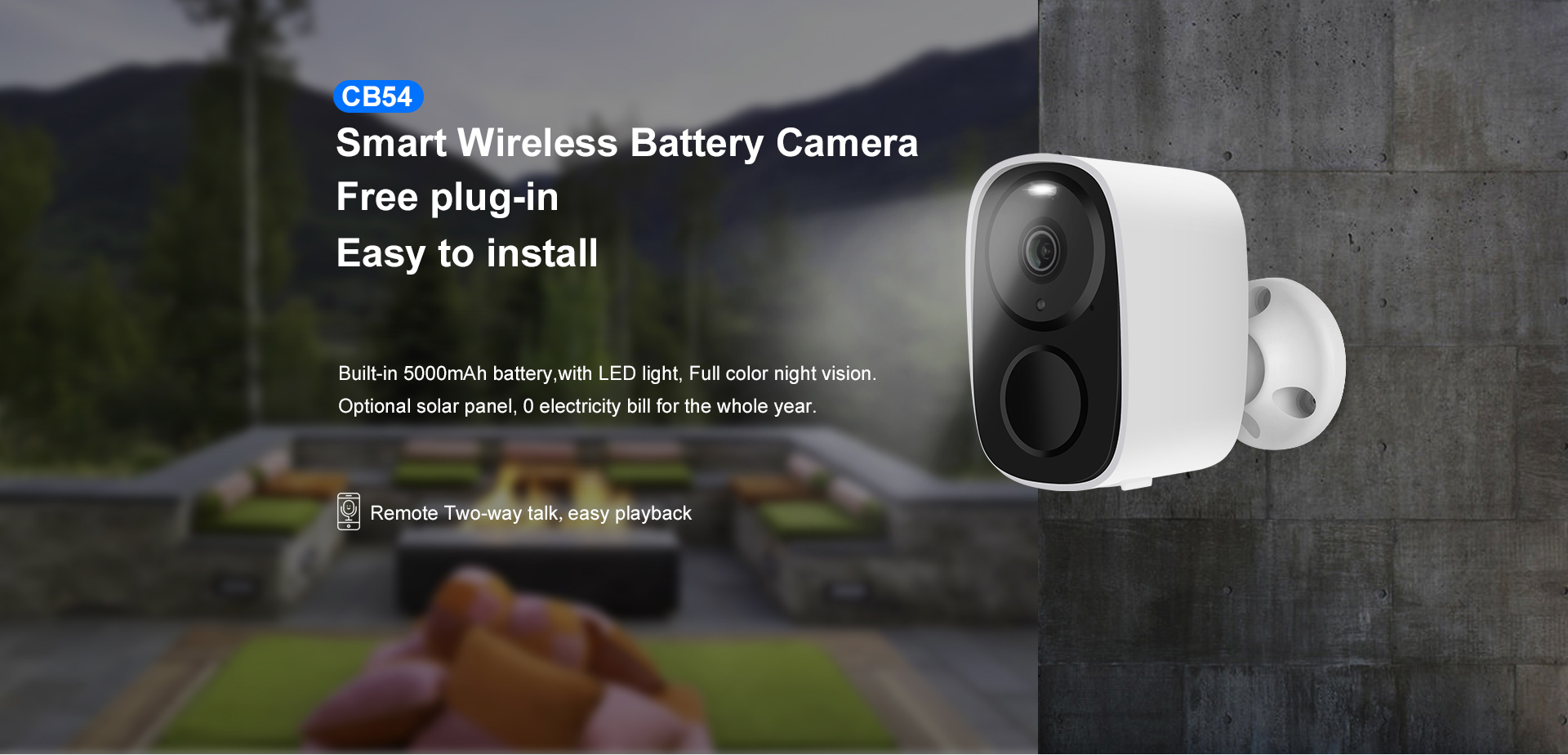

    Smart Waterproof Wireless Battery Camera CB54
