  • SystemOperation systemEmbedded Linux OS
    Online visitorSupport 4 visitors at the same time
    Image CaptureImage sensorGC2053 1/2.9-inch 1080p Progressive Scan CMOS sensor
    Minimum Illumination0.3-0.5Lux(color mode), 0 Lux(B&W mode)
    Lens3.2mm module
    View Angle145˚(Diagonal)
    Night visionAutomatic lens sensing switch,6pcs 940nm SMD IR LED, IR irradiation distance:5-10 m

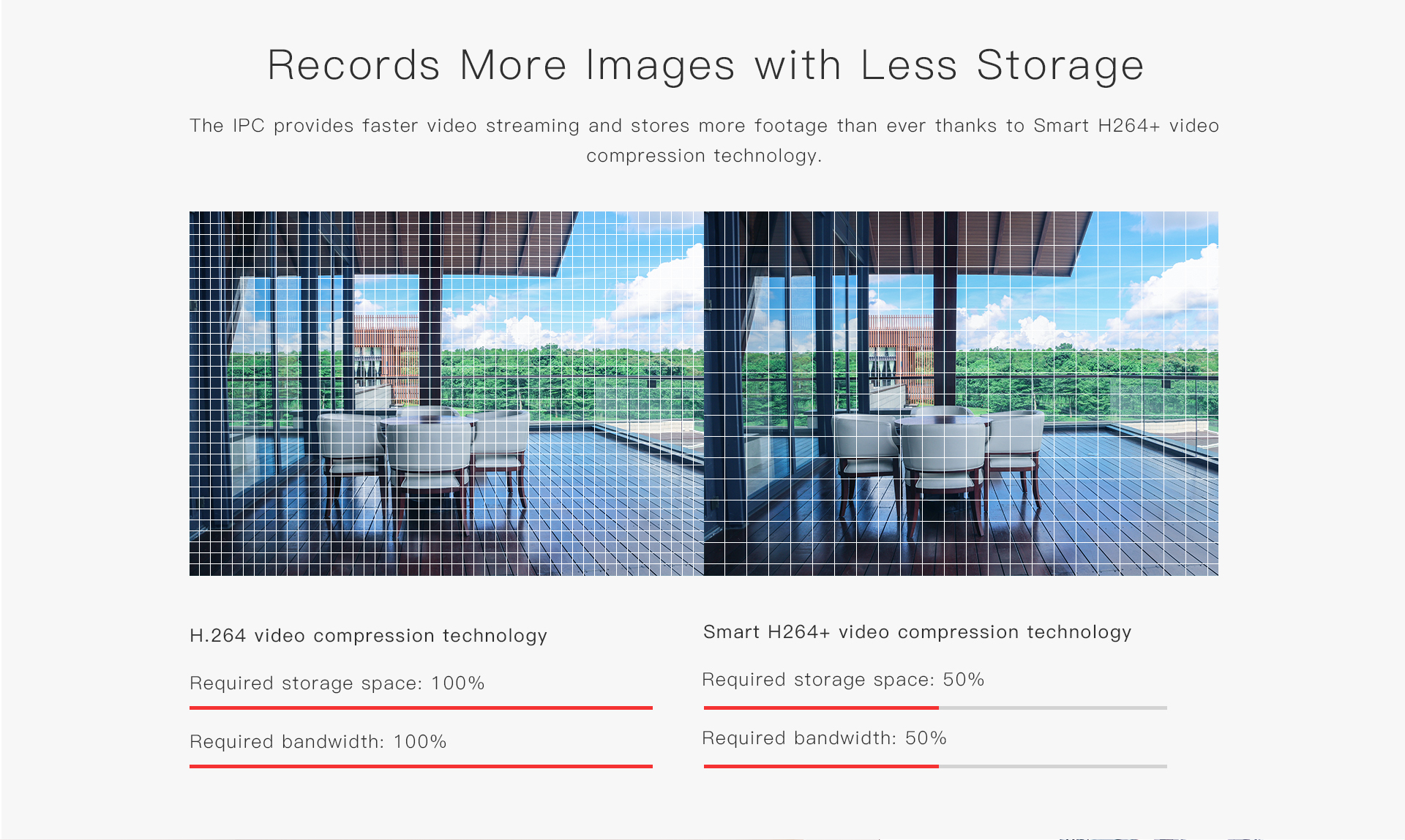

    VideoEncode formatH.264+/H.264 main profile/Motion-JPEG/JPEG
    StreamsMain stream:1080p(1920×1080)@30fps/1296p(2304×1296)@30fps Substream:360p(640×360)@15fps
    Bit Rate/Max Fps128~4096kbps/30pfs
    Image adjustmentBrightness and contrast can be adjusted
    Encode formatH.264+/H.264 main profile/Motion-JPEG/JPEG
    AudioInputBuilt-in 38db microphone
    Output8Ω0.5W speaker
    Sampling frequency /Bit width8KHz/16bit
    Compression standard /code rateADPCM/32kbps

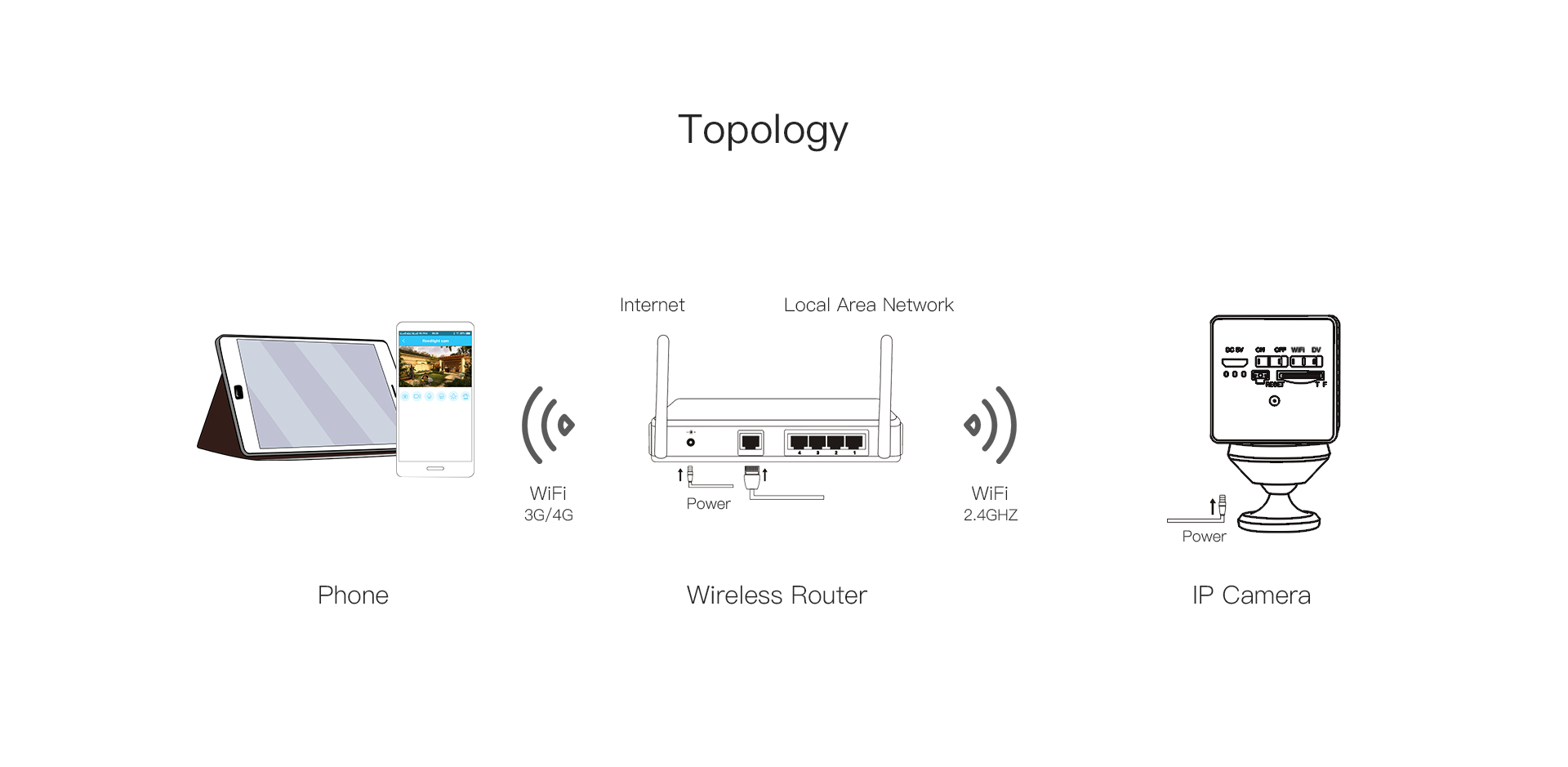

    NetworkEthernetN/A  (connect via AP hotpot mode)
    Wireless LANIEEE802.11b/g/n
    Wireless LAN Frequency2.4~ 2.4835GHz
    Wireless LAN security64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption

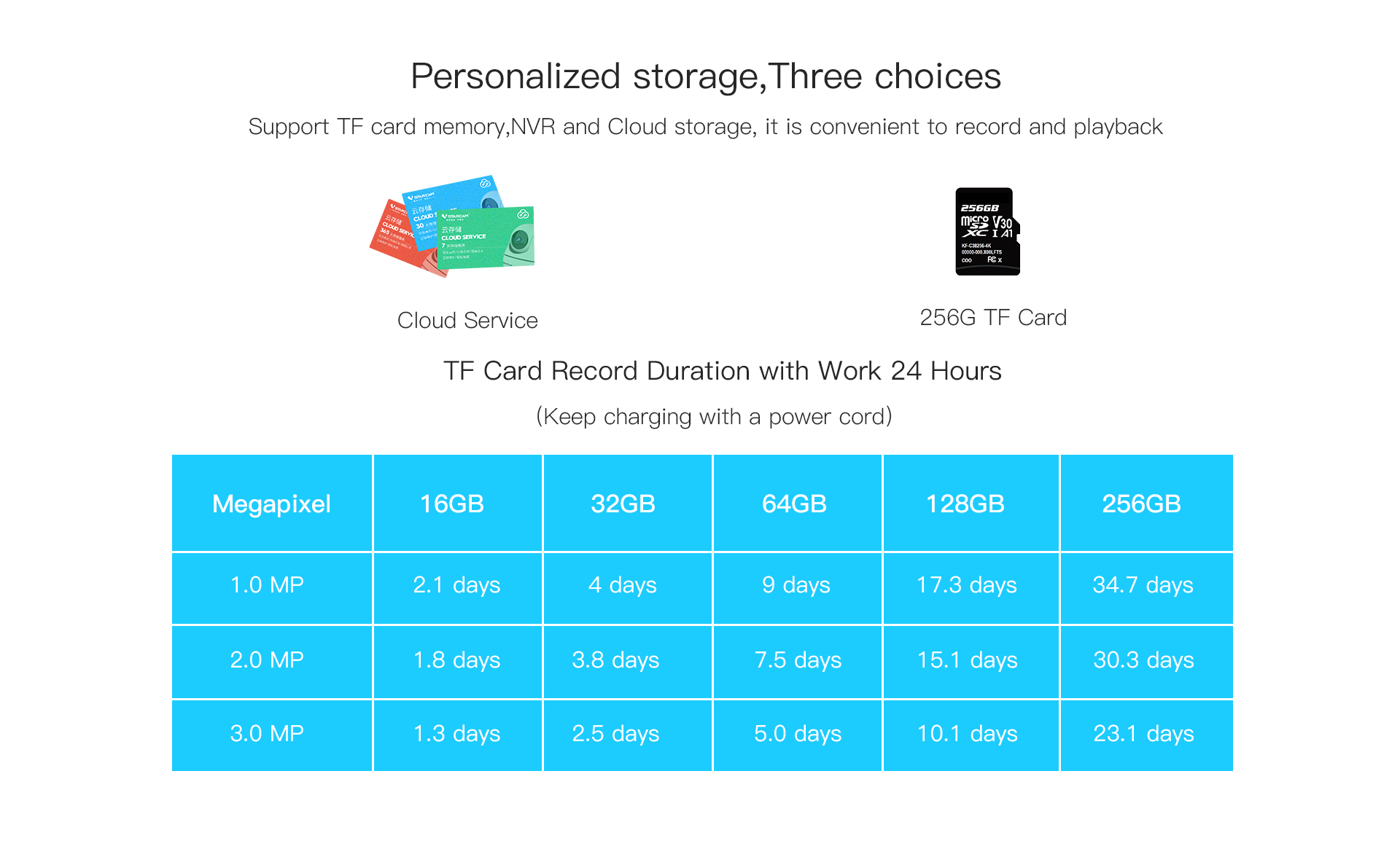

    MemorySocketTF Push-push socket,Maximum support 256GB
    AlarmAlarm TriggerPIR detection
    Physical EnvironmentalRated voltageDC5V±5%

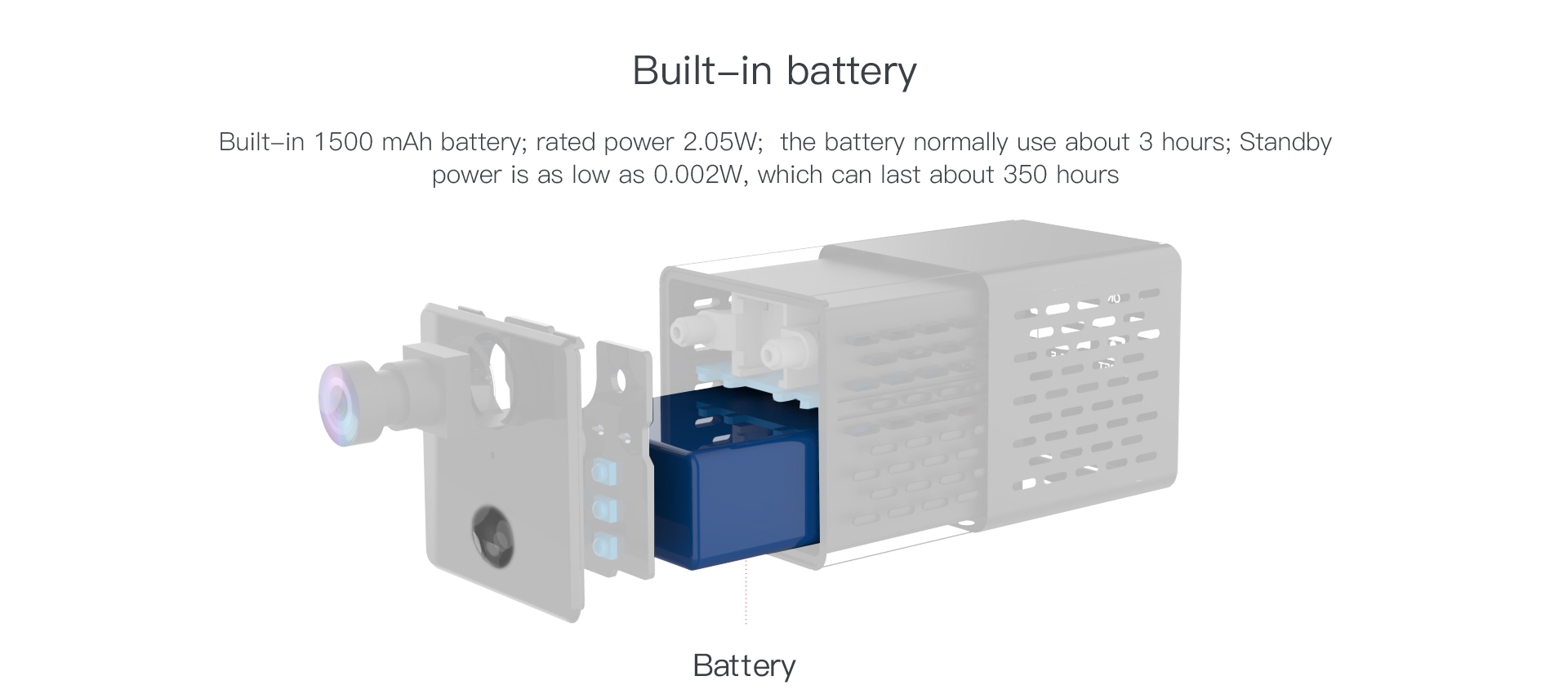

    Power supplyBuilt-in 1500mAh batteries
    Power consumptionRated power: 2.05W (with infrared lights on)  Maximum power: 3.0W(All function on)/Standby power:0.002W
    Operating conditionTemperature:-10~50℃,humidity:<90%
    WeightNet: 60g   Gross:210g(Note: in kind prevail)

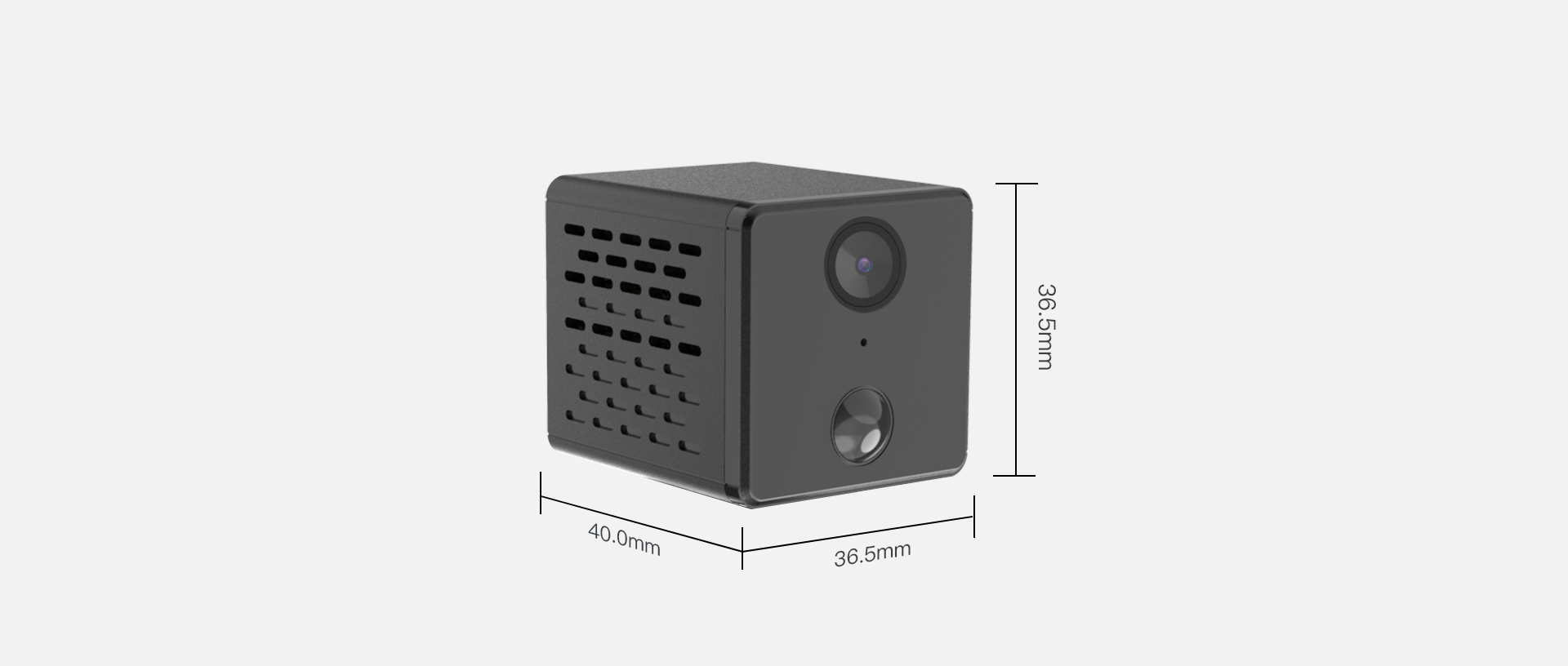

    Package size130x90x45mm (L×W×H)

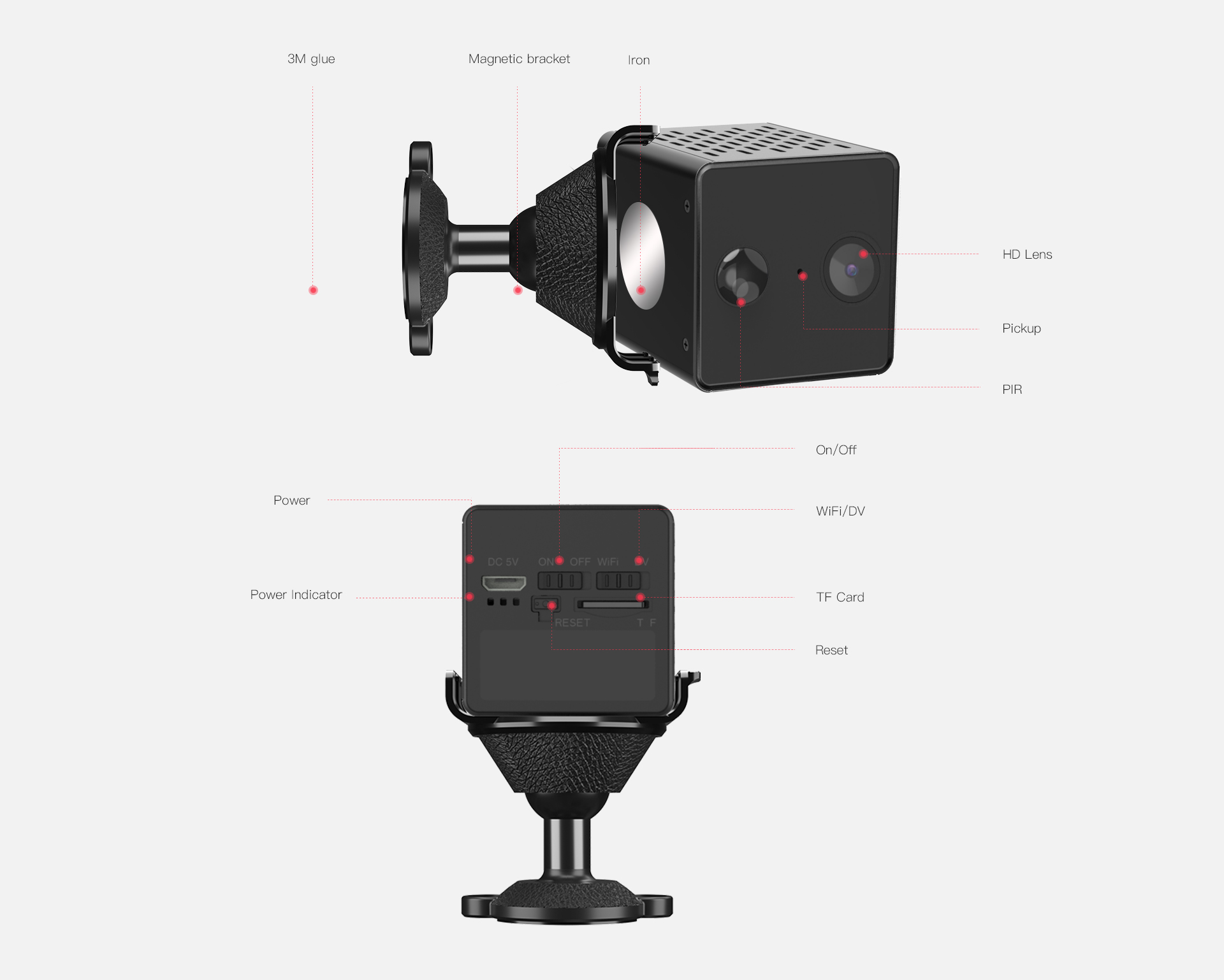

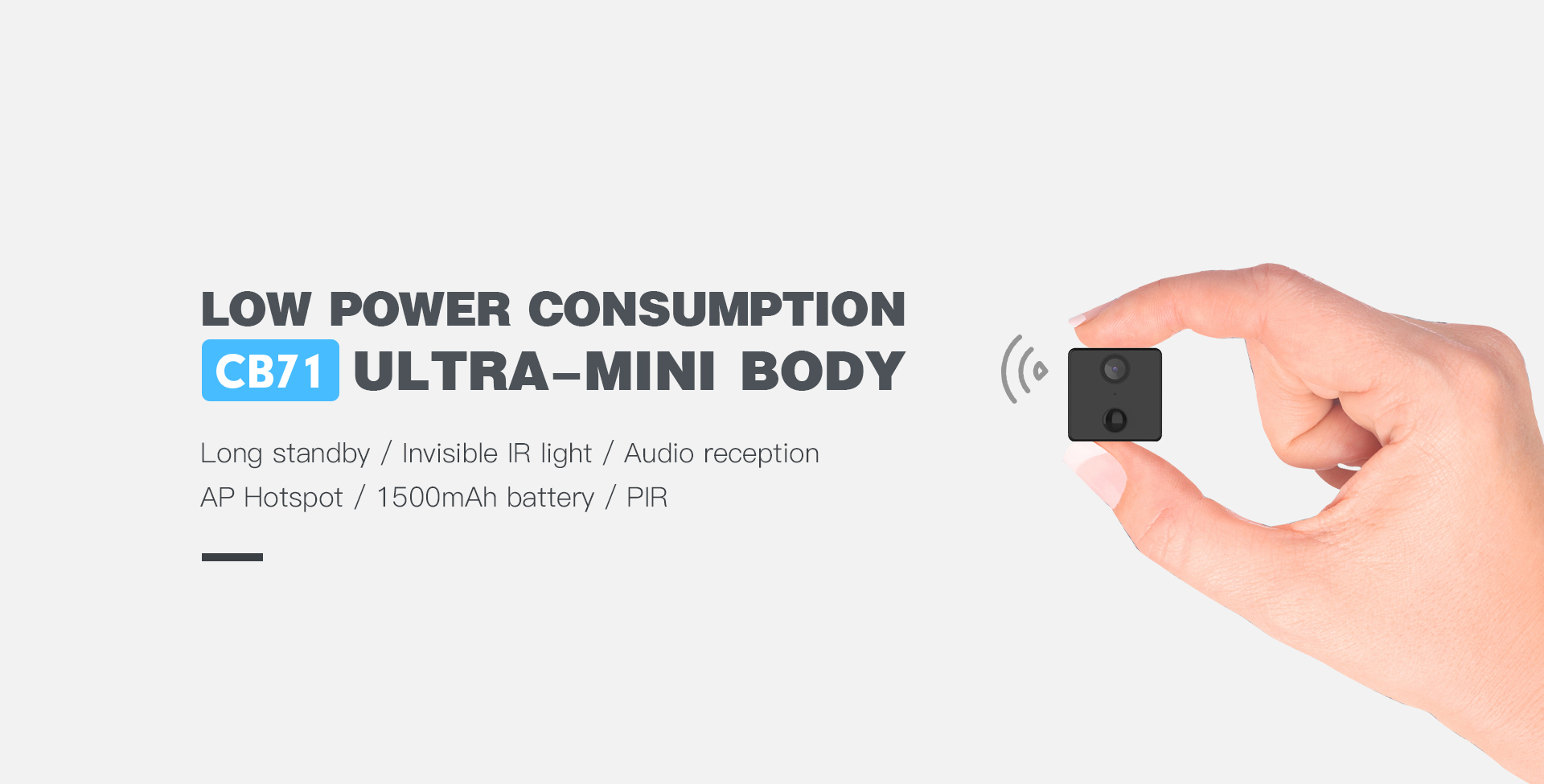

    CB71 Portable Wireless Battery Camera
