  • Sorts Type Parameters
    System Operating system Embedded Linux
    Online visitor Supports 4 visitors at the same time
    CPU/Image sensor 1/3.02 inch 1080p progressive scan CMOS sensor
    Minimum illumination 0.5 Lux(Color mode), 0.1 Lux(B&W mode)
    Lens/Viewing angle 4mm@F2.3/101°(Diagonal)
    Night vision IR-CUT with auto-switching,6 pcs LED lights, 6 pcs IR LED lights, Irradiation distance: 15~25 m, Red and blue lights alarm
    Compression standard H.264 main profile/Motion-JPEG/JPEG
    Data Rate Main stream: 1080p(1920×1080)@15fps,Substream:360p(640×360)@15fps
    Bit rate/Maximum frame rate 128~4096kbps/30fps
    Image adjustment Brightness and contrast are adjustable
    Audio Input Built-in -38dB microphone
    Output Built-in 8Ω1W speaker
    Sampling frequency/bit width 8KHz/16bit
    Compression standard/Bit Rate G.711/64kbps
    Network Network interface 10Mbps/100Mbps adaptive /RJ45
    Network protocol TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2Petc.
    Wireless network IEEE802.11b/g/n;Support AP mode
    Wireless frequency 2.4~2.4835GHz
    Wireless security encryption 64/128-bit WEP/WPA-PSK/WPA2-PSK Data encryption

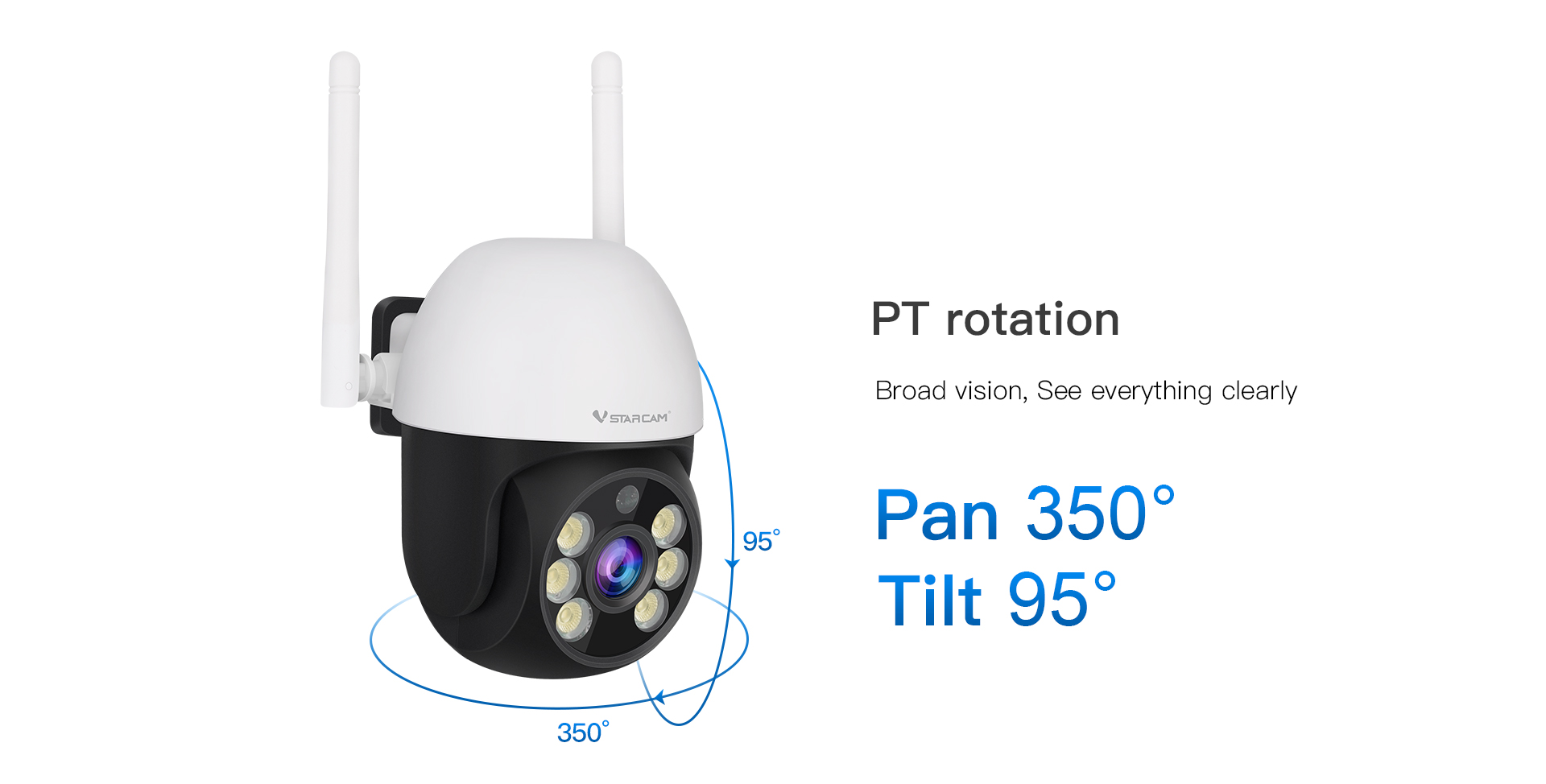

    Pan & Tilt Pan & Tilt Pan 350° /Tilt 95°
    Preset position Supports 16 (Mobile phone App supports 5) preset positions
    Storage Storage functions Supports T-Flash card(max supports 256GB); Cloud Storage; NVR;NAS
    Alarm Alarm detection Motion detection; Humanoid detection; Humanoid tracking;   Absence detection; Alarm voice prompt , flash & irradiation; LED light timing ON & OFF
    Physical Indicators Rated voltage DC12V±5%
    Operating condition Temperature: -10~50℃, Humidity: <90%
    Weight (Note: in kind prevail)

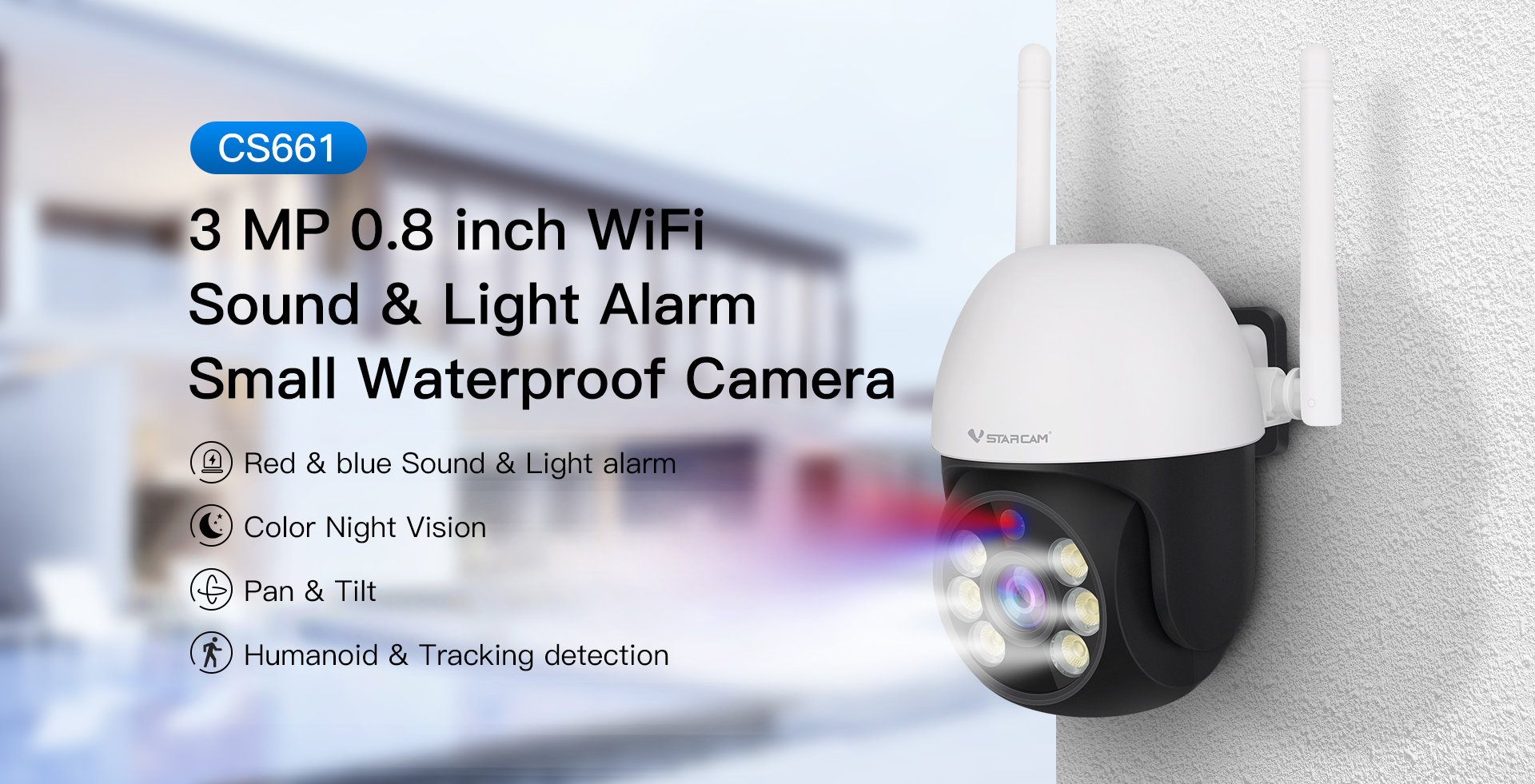

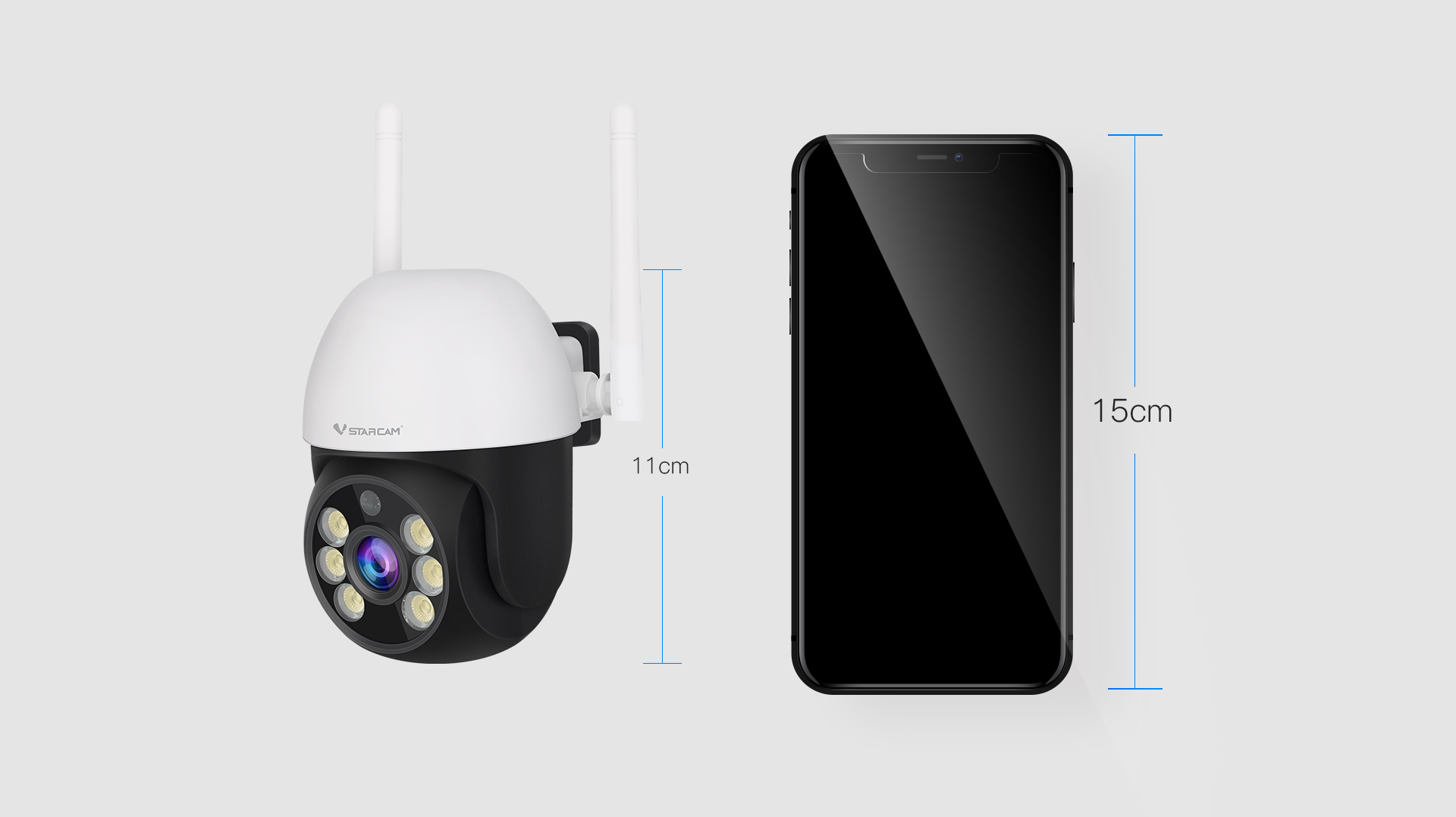

    0.8inch small intelligent Pyuntai waterproof ball machine CS661
